HPE Networking CW 2050 20G 4SR2.5 4F Switch Hub

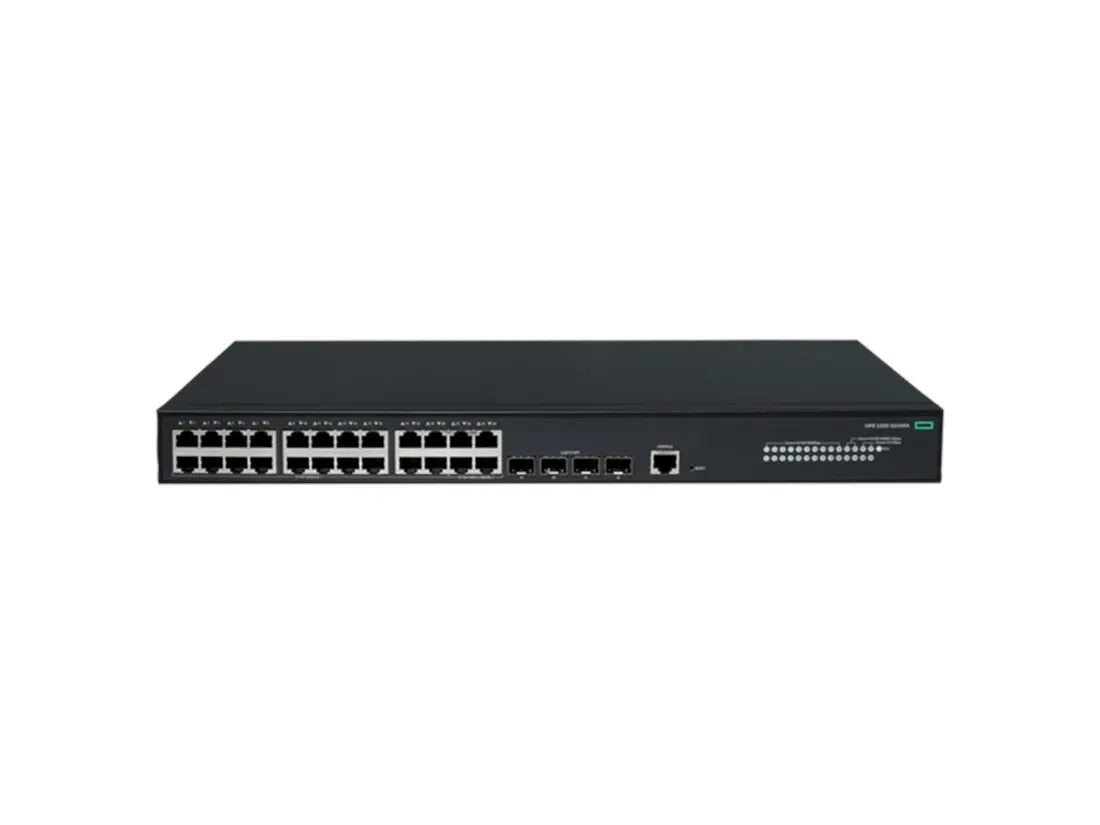

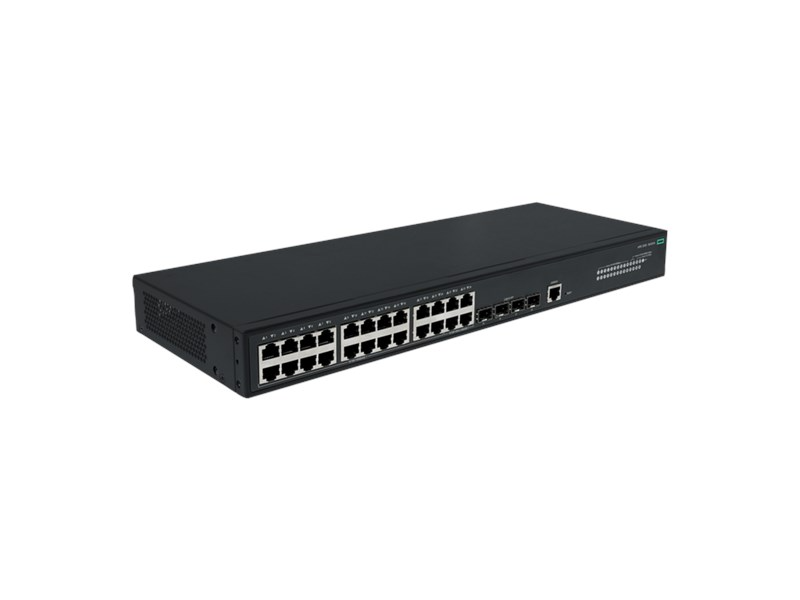

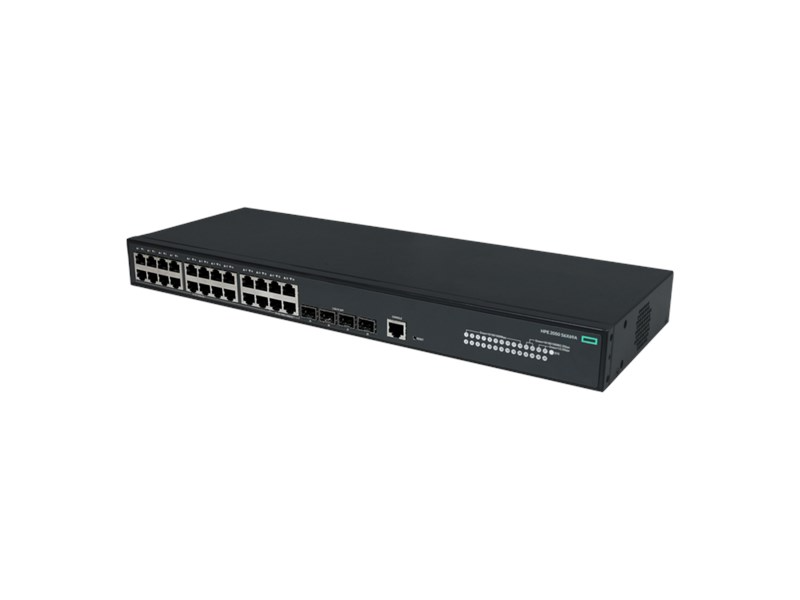

HPE Networking CW 2050 Switch

Enterprise Smart Switch with Flexible Connectivity for Businesses

The HPE Networking CW 2050 is a Layer 2 Managed Switch designed for small and medium businesses and branch offices. It features 20 x 10/100/1000BASE-T ports for connecting general network devices, along with 4 high-speed Smart Rate ports supporting 1G/2.5GbE and 4 SFP 1G/2.5G ports, allowing for flexible network system design based on usage.

20 x 10/100/1000BASE-T with 4 x Smart Rate

The 20 Gigabit Ethernet ports support 10/100/1000Mbps speeds, suitable for connecting computers, printers, Access Points, IP cameras, servers, and other network devices. The 4 x Smart Rate ports support 1G/2.5GbE, increasing bandwidth for newer devices that require higher speeds than Gigabit Ethernet.

4 x High-Speed 1G/2.5G BASE-X SFP Ports

The HPE Networking CW 2050 comes with 4 x 1G/2.5G SFP or 4 x 1G/2.5G BASE-X SFP for Uplink connections to other network devices. This enhances flexibility in connecting both copper and fiber optic systems, ideal for connecting to Core Switches, Servers, or central network infrastructure.

Switching Capacity up to 80 Gbps with Throughput of 59.52 Mpps

Supporting a switching capacity of up to 80 Gbps and a maximum throughput of 59.52 Mpps, this switch can efficiently manage data traffic within the network. With a 0.5 MB Packet Buffer, it can handle data transmission during high traffic periods, making it suitable for office networks and businesses with numerous connected devices.

Supports Stacking with Two-Switch IRF Stack

Supports stacking of up to 2 Switches with Two-Switch IRF Stack, providing flexibility in network design and expansion. Devices within the system can be managed in an organized manner, making it suitable for businesses that need a network system ready for future growth.

Multiple Management Options with SmartMC and SNMP

Supports management via SmartMC, Web GUI, CLI, SNMP, and HPE IMC, allowing administrators to configure, monitor, and manage the switch in various ways. It also includes functions to control and oversee the network to suit the organizational environment.

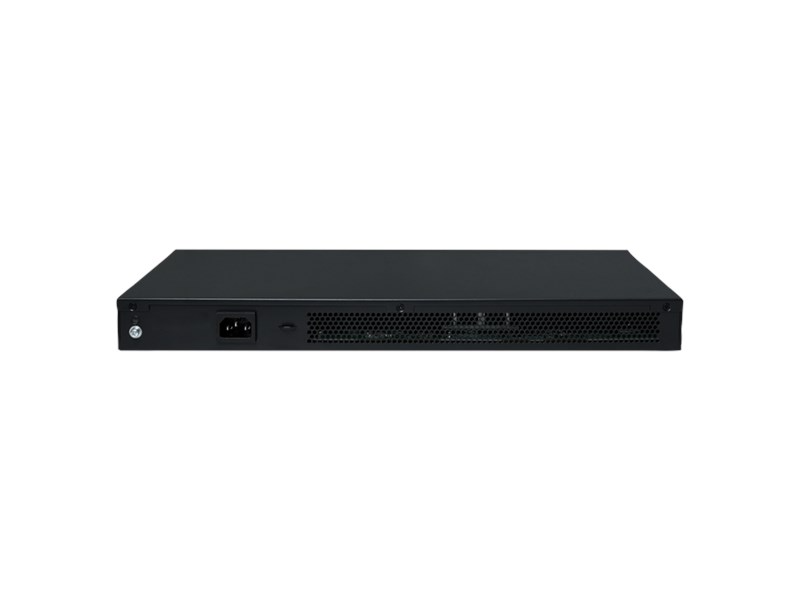

Non-PoE with Built-in Power Supply and Fanless Design

The HPE Networking CW 2050 model S6X69A is a Non-PoE switch with a built-in power supply, supporting 90–264V AC input and consuming approximately 16W AC. The device features a fanless cooling system, reducing noise, making it suitable for offices and areas requiring a quiet environment.

Ideal for Businesses and Branch Offices

With flexible connectivity including 20 x 10/100/1000BASE-T, 4 x Smart Rate 1G/2.5GbE, and 4 x 1G/2.5G SFP ports, along with stacking capabilities and multiple network management options, the HPE Networking CW 2050 is suitable for SMBs and branch offices that require an enterprise-grade smart switch, backed by a Limited Lifetime Hardware Warranty.
