HPE Networking Instant On 1960 24G PoE 4F SFP+ 370W Switch

HPE Networking Instant On 1940 Switch Series

Gigabit Smart-Managed Switch with PoE and 10GbE Uplink for Business and Office

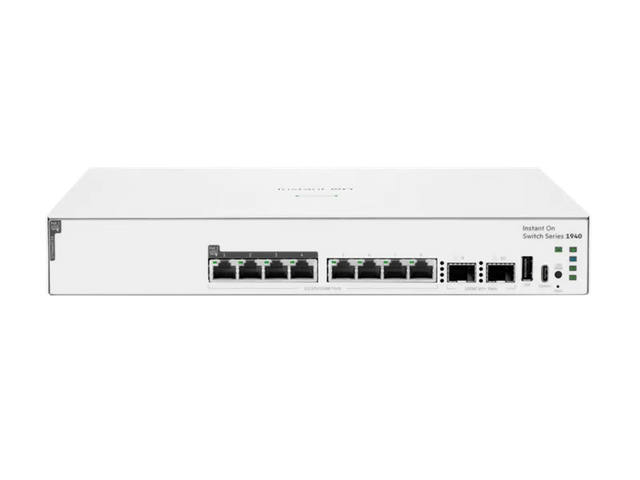

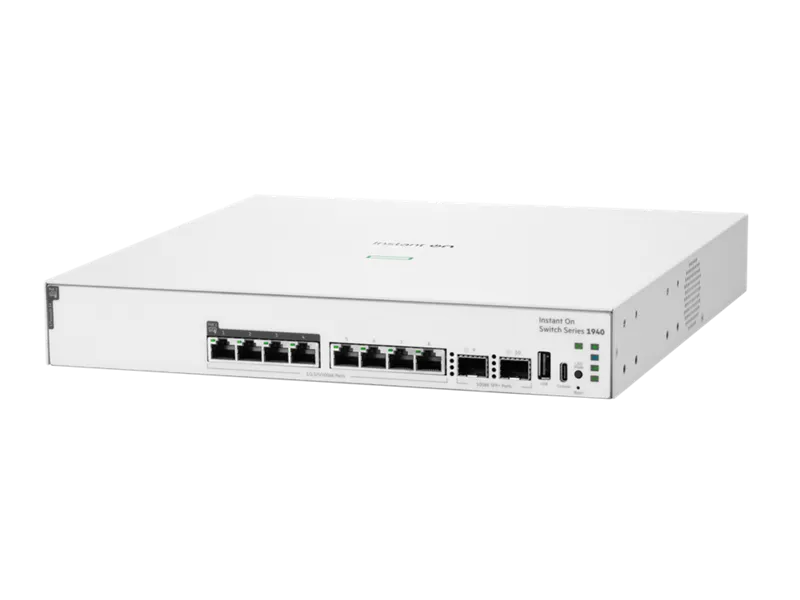

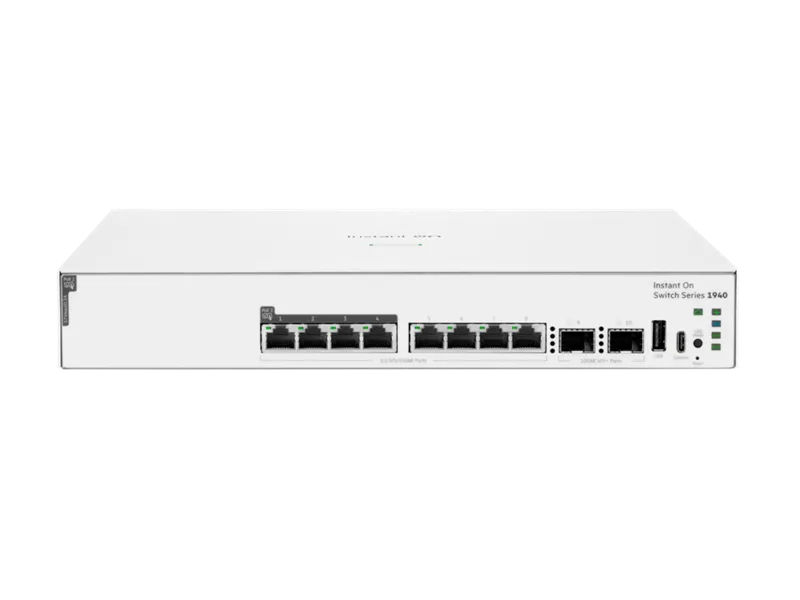

The HPE Networking Instant On 1940 model S4A31A is a Layer 2+ Smart-Managed switch designed for small to medium-sized businesses and branch offices. It comes with 24 Gigabit Ethernet ports supporting Class 4 PoE and 4 x 1/10GbE SFP+ uplink ports, allowing for the connection of network devices and power delivery over LAN cables from a single switch, while also supporting static routing for more flexible network management.

24 Gigabit Ports with Class 4 PoE

All 24 RJ-45 ports support 10/100/1000Mbps speeds and IEEE 802.3af/at Class 4 PoE, capable of delivering up to 30W per port. This is ideal for access points, security cameras, IP phones, and PoE-enabled IoT devices, allowing for both data transmission and power delivery over a single LAN cable, reducing the complexity of end-device installation.

PoE Budget up to 240W

The HPE Networking Instant On 1940 S4A31A supports a maximum PoE budget of 240W, allowing you to power multiple network devices from a single switch. It is suitable for Wi-Fi systems, security cameras, IP phones, and PoE-enabled network devices without the need for separate power sources for each device.

4 x 1/10GbE SFP+ Ports for High-Speed Uplink

Equipped with 4 SFP+ ports supporting both 1GbE and 10GbE connectivity, it provides flexibility in network system design. It is ideal for connections to core switches, servers, storage, or network devices requiring high bandwidth and supports fiber connectivity for fiber-optic links.

128 Gbps Switching Capacity with 95 Mpps Throughput

It supports a switching capacity of up to 128 Gbps and a maximum throughput of 95 Mpps, helping to support efficient internal network data transmission, with 2MB packet buffer, 1GB SDRAM, and 512MB Flash memory to support system operations.

Layer 2+ with Static Routing

Supports Layer 2+ capabilities with IPv4 static routing, allowing for effective VLAN management and routing between networks. It supports up to 256 VLANs and 32 IPv4 static routes, suitable for organizations that need to segment their network and manage internal traffic.

Supports Link Aggregation and Jumbo Frames

Supports up to 16 link aggregation groups, helping to combine links to increase bandwidth and connection continuity, while also supporting Jumbo Frames up to 9,216 bytes, suitable for network systems with large data transfers between servers, storage, and network devices.

Management via Cloud and Instant On Mobile App

Can be managed via the HPE Networking Instant On Cloud and Instant On Mobile App, allowing administrators to configure, check status, and manage the switch conveniently from a remote location. The cloud-based web portal helps reduce administrative complexity and can also be used in conjunction with a web browser and SNMP manager for various network management styles.

Local Web GUI for Internal System Management

In addition to management via the cloud and mobile app, the HPE Networking Instant On 1940 also supports management via a web browser, allowing administrators to access the Local Web GUI to configure and monitor devices within the network according to their operational needs.

Easy-to-Deploy with Deployment Flexibility

The HPE Networking Instant On 1940 switch series is designed to be easy to install and manage, helping simplify network deployment for businesses that want to reduce network complexity. It supports management via cloud, mobile, and local web GUI, making it suitable for applications that require deployment flexibility and both internal and remote system administration.

Internal Power Supply with PoE Support

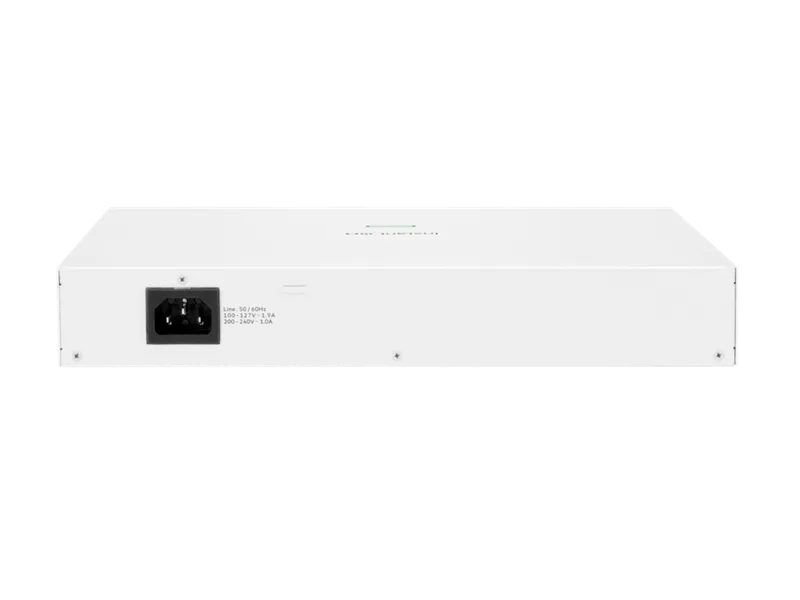

The HPE Networking Instant On 1940 model S4A31A uses an internal power supply, supporting 100–127V and 200–240V AC, and supports a maximum PoE budget of 240W to provide power to end devices that support IEEE 802.3af/at, with a cooling system consisting of 2 fixed fans.

Versatile Installation, Supports Deployment Flexibility

The device supports table-top, wall, under-table, and standard 19-inch EIA rack installation. It measures 560.1 × 439.9 × 116.1 mm and weighs 6.02 kg, allowing for the selection of an installation location suitable for offices, network rooms, and network system environments.

Suitable for Businesses and Branch Offices

With 24 x 10/100/1000BASE-T Class 4 PoE ports, 4 x 1/10GbE SFP+ uplink ports, 240W PoE budget, 128 Gbps switching capacity, and 95 Mpps throughput, the HPE Networking Instant On 1940 S4A31A is suitable for small to medium-sized businesses, branch offices, network rooms, Wi-Fi systems, security cameras, and network infrastructure that requires Gigabit connectivity along with 10GbE uplink and cloud/mobile app management.
