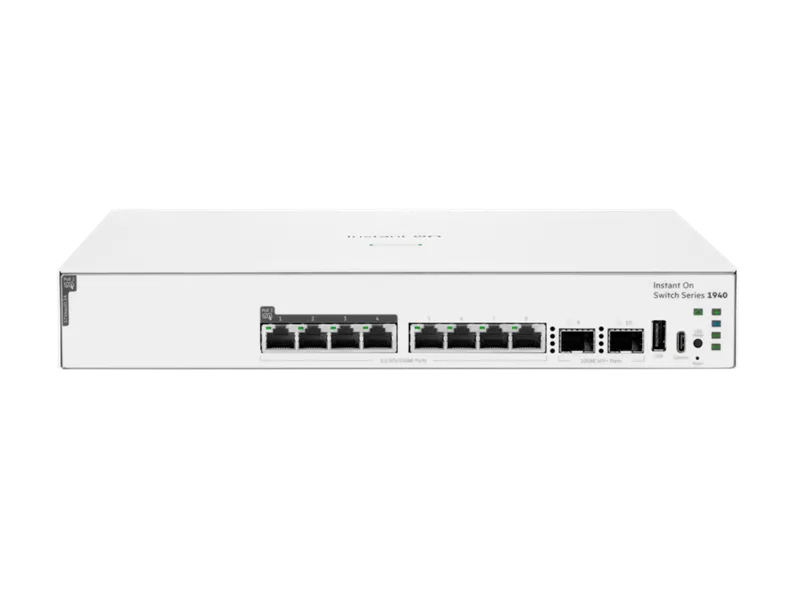

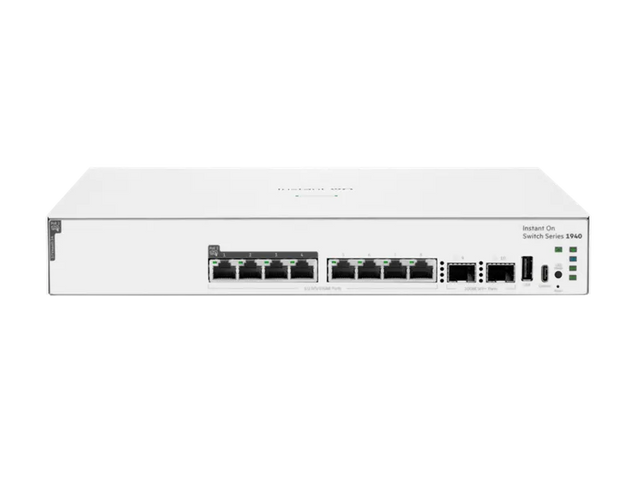

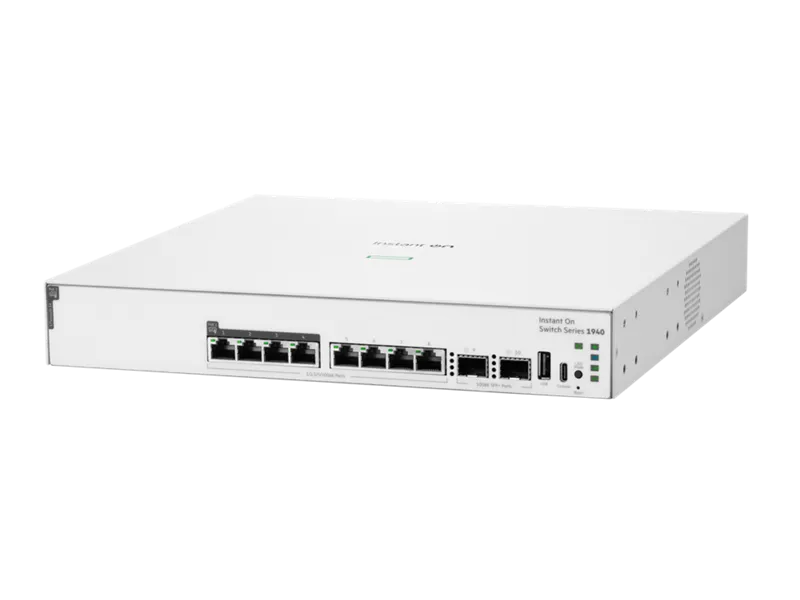

HPE Networking Instant On 1940 8G PoE 2F 124W Switch

HPE Networking Instant On 1940 Switch

Smart-Managed Hub Switch with Gigabit PoE Class 6 for Businesses and Offices

The HPE Networking Instant On 1940 model S4A29A is a Smart-Managed Layer 2+ hub switch designed for small and medium businesses. It comes with 8 Gigabit Ethernet ports, supporting Class 6 PoE, and 2 1GbE SFP ports for uplinks, allowing network devices to be connected and powered via a single LAN cable. It also supports Static Routing for more flexible network management.

8 Gigabit Ports with Class 6 PoE

All 8 RJ-45 ports support 10/100/1000Mbps speeds and IEEE 802.3af/at/bt Class 6 PoE, delivering up to 60W per port. It is suitable for Access Points, IP cameras, VoIP phones, and IoT devices that support PoE, with a total PoE budget of up to 124W, simplifying the installation of network devices that require both data and power through a single cable.

2 × 1GbE SFP Uplinks supporting Fiber Connectivity

Equipped with 2 1GbE SFP ports for uplink connections, supporting fiber connectivity to connect to the core network switch or central network devices. This increases system design flexibility and separates the uplink path from the LAN ports for end devices.

20 Gbps Switching Capacity with 14.88 Mpps Throughput

The HPE Networking Instant On 1940 S4A29A supports a high switching capacity of up to 20 Gbps and a maximum throughput of 14.88 Mpps, efficiently supporting data transmission within the network. With a 0.5MB packet buffer and a MAC address table supporting up to 16K addresses, it is suitable for office and business networks with various types of connected devices.

Smart-Managed Layer 2+ with Static Routing

Supports Layer 2+ capabilities with IPv4 Static Routing, allowing for proper VLAN management and routing between networks. It supports up to 256 VLANs and up to 32 IPv4 Static Routes, suitable for network segmentation within businesses, offices, and areas with multiple device groups.

System Management via Instant On Cloud and Mobile App

System management can be done via the HPE Networking Instant On Cloud Portal and Instant On Mobile App, allowing administrators to conveniently configure, monitor status, and manage switches both remotely and on-site. HPE supports management options via Cloud, Mobile, and Local Web GUI, including Web Browser and SNMP Manager, enhancing flexibility in managing systems on-site or remotely.

Designed to Simplify Network Deployment

The HPE Networking Instant On Switch Series 1940 is designed to simplify network deployment and daily system maintenance. It can be configured, monitored, and managed via the Instant On Cloud Portal or Mobile App, reducing the steps required for installation and maintenance. It is suitable for organizations that require deployment flexibility and network management adapted to various usage patterns.

Fanless Design with Built-in Power Supply

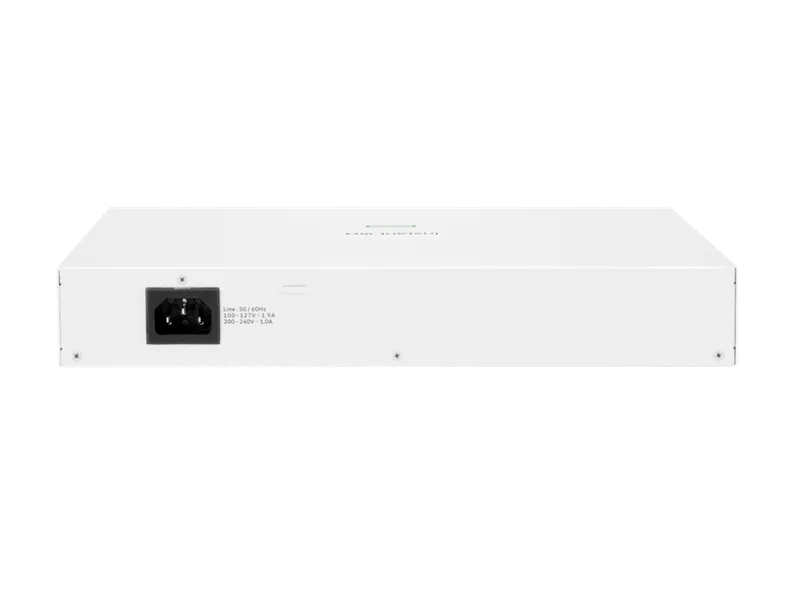

The device features a fanless design, reducing operating noise, and comes with an internal power supply supporting 100–127V and 200–240V AC. This makes it suitable for installation in offices, network rooms, or workspaces that require a quiet environment.

Versatile Installation Options

Supports various installation methods including Table-top, Wall Mount, Under-table, and 1U Rack Mount, enhancing deployment flexibility for choosing the appropriate installation location for the workspace, including offices, network rooms, and specialized network equipment installation areas.

Suitable for Management for Small Organizations

With Smart-Managed Layer 2+, Static Routing, Cloud Management, Mobile App, and Local Web GUI, the HPE Networking Instant On 1940 S4A29A is suitable for management for small organizations that require a network system that can be managed both on-site or remotely, with support for future system expansion according to business needs.

Ideal for Businesses and Branch Offices

With 8 Gigabit Class 6 PoE ports, 124W PoE budget, 2 1GbE SFP ports, 20 Gbps switching capacity, and a Smart-Managed Layer 2+ system, the HPE Networking Instant On 1940 S4A29A is suitable for small and medium businesses, branch offices, retail stores, and network systems that require connecting and powering devices via LAN cables, with flexible management via Cloud, Mobile App, and Local Web GUI, and a Limited Lifetime Warranty.
