SpeedCom  |  SKU: D-LINK-DIR-835M

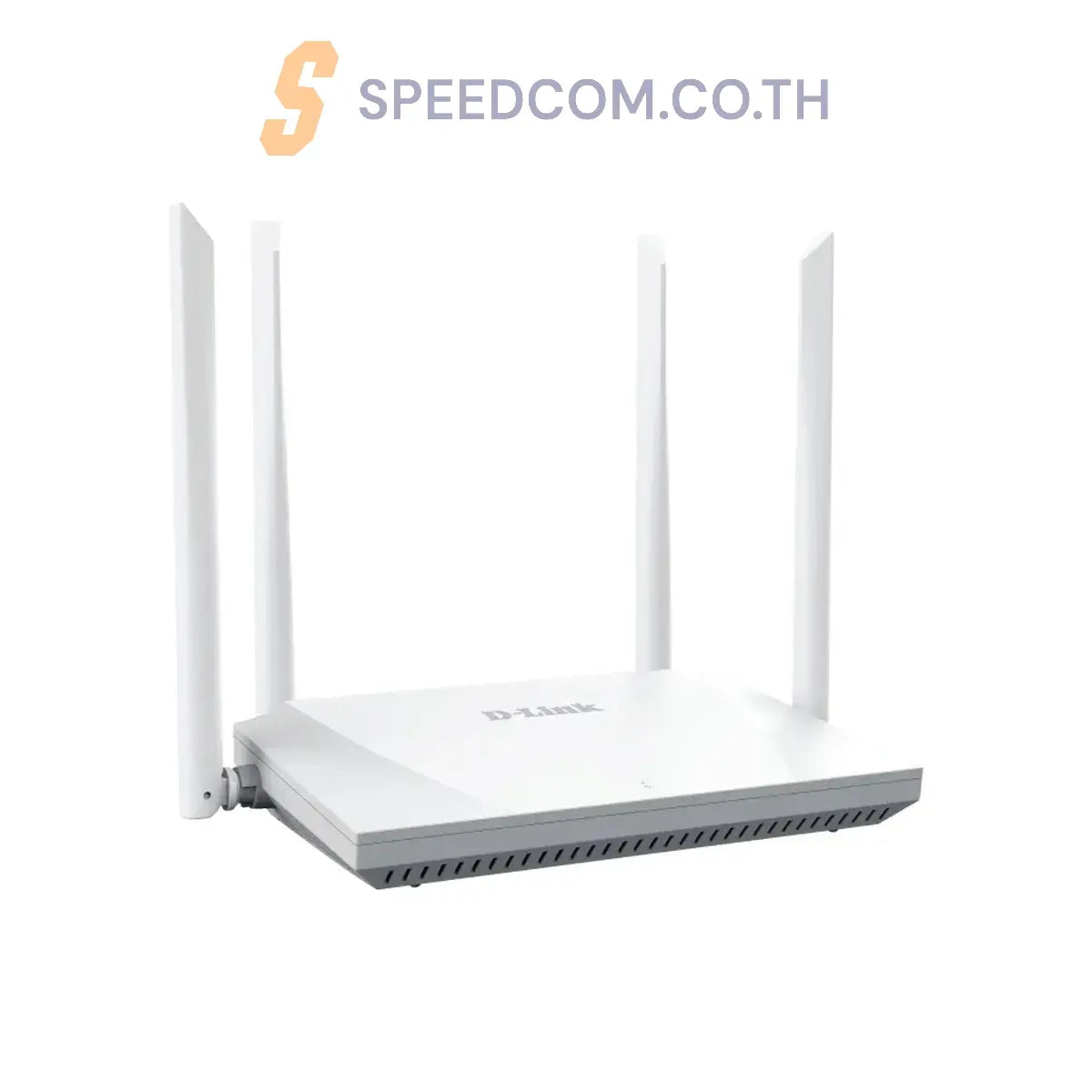

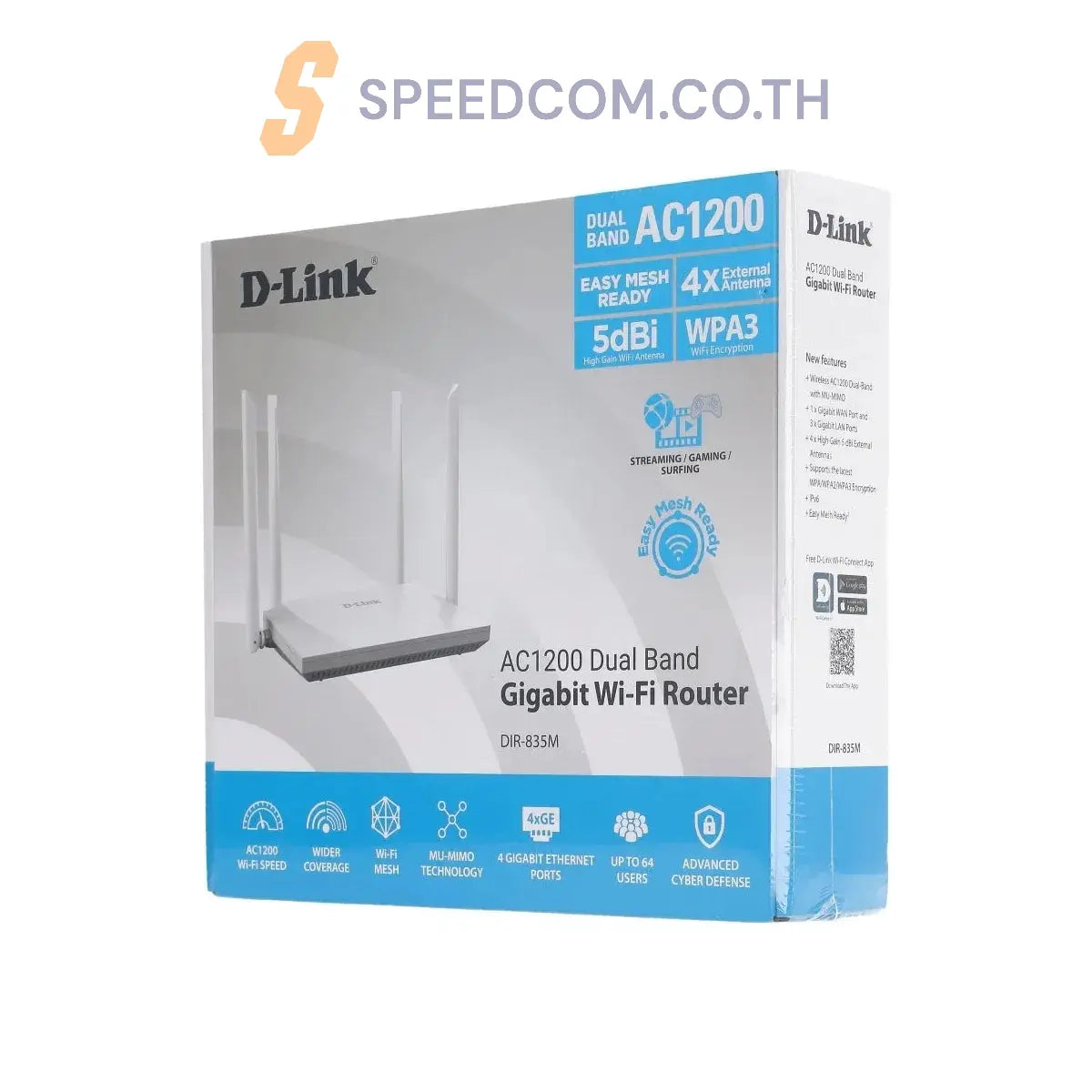

D-Link DIR-835M Wireless AC1200 Dual Band Gigabit Router

790.00 ฿

Care information

Exchange available within 7 days of receipt if conditions apply

1. The warranty applies only in cases where the product is damaged due to a malfunction resulting from a manufacturing defect

2. Dead pixel warranty applies for Laptop products and computer monitors with 5 or more dead pixels

3. The store delivered the wrong product

Authentic product with official warranty: LT

Payment

Payment

  • Bank Deposit
  • Full Payment via Credit Card (All Major Banks Accepted)
  • Cash on Delivery (COD)

Delivery and Shipping

Delivery

  • Express Delivery within 3 Hours Service fee 300 THB
    (Available only in Bangkok, Metropolitan Area, and Chiang Mai city)
  • Domestic shipping packed and delivered by Best Express
  • Pick up your order at the nearest branch

D-Link DIR-835M Wireless AC1200 Dual Band Gigabit Router

D-Link DIR-835M Wireless AC1200 Dual Band Gigabit

  • Button: WPS button to set up wireless connection/ RESET button to restore factory default settings
  • External power supply: Input: 12V DC, 1A

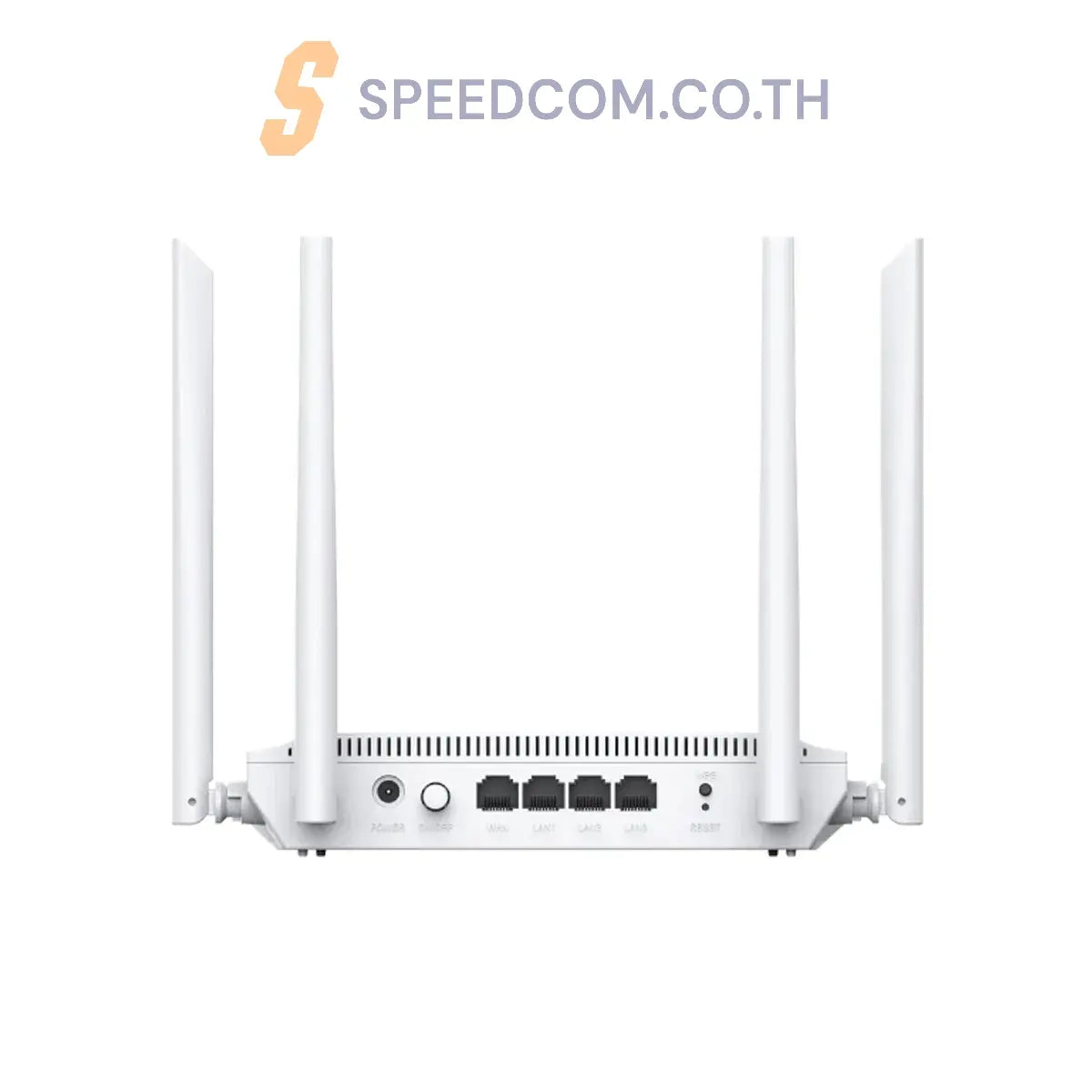

  • Interface: 1x 10/100/1000 WAN Ethernet 3x 10/100/1000 LAN Ethernet
  • Wireless standards: IEEE 802.11 a/b/g/n/ac
  • Dimension(WxDxH): 18.20 x 10.80 x 3.80 cm
  • Frequency: 2.4GHz: up to 300Mbps
  • Wireless: 5GHz: up to 867Mbps
  • Certification: CD , FCC
  • Warranty: Lifetime (LT)



D-Link DIR-835M Wireless AC1200 Dual Band Gigabit

Maximum speed with Dual Band Wireless N and Gigabit technology
The D-link DIR-835 Wireless N750 Dual Band Router lets you check email and surf the Internet using the 2.4GHz band while simultaneously streaming High Definition (HD) movies and other media on the 5GHz band for smooth playback without interruption. The DIR-835's Gigabit port allows users to access maximum connection speeds, and its dual-band technology supports both 2.4GHz and 5GHz wireless signals, making all your network connections fast and reliable.

Powered by HD Fuel with intelligent QoS
Harness the power of HD Fuel to watch movies and play online games with superior router technology. HD Fuel combines the speed and clarity of the 5GHz wireless band with advanced QoS mechanisms to create a high-quality HD media experience. The DIR-835 uses D-link intelligent QoS Prioritization technology to analyze and separate your wired and wireless traffic into multiple data streams, so applications like VoiP, video streaming, and online gaming can be prioritized. HD Fuel combines raw speed with this intelligent prioritization to give you an uninterrupted multimedia experience.

Share a multifunction printer or USB storage drive
Users can share printing, scanning, and faxing functionality across the office or home by simply connecting a multifunctional USB printer. Users can also connect a USB hard drive to create shared storage for networked computers and devices, making it easy to share photos, documents, and media files across the home or office.

Support IPv6
The DIR-835 supports the IPv6 standard and is compatible with third-party IPv6 devices. Users can upgrade to a 128-bit addressing system to connect directly to anyone in the world using a dedicated IP address. This router can handle routing for both IPv4 and IPv6 networks simultaneously, making it a router that is flexible and meets your current and future needs, both forward and backward compatible.

General characteristics

standard
• IEEE802.11n Wireless
• IEEE802.11g (IEEE)
• IEEE802.11a-standard
• IEEE802.11b (IEEE802.11b standard)
• IEEE802.3 certified
• IEEE802.3u certified
• IEEE802.3ab (IEEE802.3ab standard)

WAN connection type
• Static IP
• Dynamic IP
• PPPoE
• PTT
• L2TP

Device Interface
• Four 10/100/1000Base-T LAN ports
• 10/100/1000Base-T WAN port
• USB 2.0 port

Antenna type
• 3 external reverse SMA antennas

Wireless speed*
• 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• 802.11b: 1, 2, 5.5, 11 Mbps
• 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• 802.11n (2.4GHz): 6.5 to 300 Mbit/sec.
• 802.11n (5GHz): 6.5 to 450 Mbit/s

Sending items
• 802.11 a:
19 dBm at 6-36 Mbit/s
18 dBm at 48 Mbit/s
16 dBm at 54 Mbit/s
• 802.11 b:
20 dBm at 1, 2, 5.5, 11 Mbit/s
• 802.11g:
20 dBm at 6-36 Mbit/s
19 dBm at 48 Mbit/s
18 dBm at 54 Mbit/s
• 802.11n (2.4 GHz):
HT20
20 dBm at MCS0-MCS4, MCS8-MCS12
19 dBm at MCS5, MCS13
18 dBm at MCS6, MCS14
17 dBm at MCS7, MCS15
HT40
19 dBm at MCS0-MCS5, MCS12-MCS13
18 dBm at MCS6, MCS14
16 dBm at MCS7, MCS15
• 802.11n (5GHz):
HT20
19 dBm at MCS0-MCS3, MCS8-MCS11, MCS16-MCS19
18 dBm at MCS4-MCS6, MCS12-MCS14, MCS20-MCS21
17 dBm at MCS22
16 dBm at MCS7, MCS15
14 dBm at MCS23
HT40
19 dBm at MCS0-MCS3, MCS8-MCS11, MCS16-MCS19
18 dBm at MCS4-MCS5, MCS12-MCS13, MCS20-MCS21
17 dBm at MCS6, MCS14
16 dBm at MCS7, MCS15, MCS22
13 dBm at MCS23

Receiver sensitivity
• 802.11 a:
-82 dBm at 6 Mbit/s
-81 dBm at 9 Mbit/s
-79 dBm at 12 Mbit/s
-77 dBm at 18 Mbit/s
-74 dBm at 24 Mbit/s
-70 dBm at 36 Mbit/s
-66 dBm at 48 Mbit/s
-65 dBm at 54 Mbit/s
• 802.11 b:
-87 dBm at 1 Mbit/s
-87 dBm at 2 Mbit/s
-85 dBm at 5.5 Mbit/s
-82 dBm at 11 Mbit/s
• 802.11g:
-82 dBm at 6 Mbit/s
-81 dBm at 9 Mbit/s
-79 dBm at 12 Mbit/s
-77 dBm at 18 Mbit/s
-74 dBm at 24 Mbit/s
-70 dBm at 36 Mbit/s
-66 dBm at 48 Mbit/s
-65 dBm at 54 Mbit/s
• 802.11n (2.4 GHz):
HT20
-82 dBm at MCS0/8
-79 dBm at MCS1/9
-77 dBm at MCS2/10
-74 dBm at MCS3/11
-70 dBm at MCS4/12
-66 dBm at MCS5/13
-62 dBm at MCS6/14
-64 dBm at MCS7/15
HT40
-79 dBm at MCS0/8
-76 dBm at MCS1/9
-74 dBm at MCS2/10
-74 dBm at MCS3/11
-67 dBm at MCS4/12
-63 dBm at MCS5/13
-65 dBm at MCS6/14
-61 dBm at MCS7/15
• 802.11n (5GHz):
HT20
-82 dBm at MCS0/8/16
-79 dBm at MCS1/9/17
-77 dBm at MCS2/10/18
-74 dBm at MCS3/11/19
-70 dBm at MCS4/12/20
-66 dBm at MCS5/13/21
-65 dBm at MCS6/14/22
-64 dBm at MCS7/15/23
HT40
-79 dBm at MCS0/8/16
-76 dBm at MCS1/9/17
-74 dBm at MCS2/10/18
-74 dBm at MCS3/11/19
-67 dBm at MCS4/12/20
-63 dBm at MCS5/13/21
-62 dBm at MCS6/14/22
-61 dBm at MCS7/15/23

safety
• WPA and WPA2 (Wi-Fi Protected Access)
• 64/128 bit WEP encryption
• Wi-Fi Security Setup (WPS) - PIN/PBC

Equipment management and monitoring
• Microsoft Internet Explorer 6+ or Firefox 1.5+ or other browser that supports Java
• D-link Network Monitor Yahoo! Widget
• D-link Yahoo! Widget Internet Usage Meter
• DLNA server for media streaming to compatible media players*****

Support SharePort Plus function
• Supports connecting external hard drives or multifunction printers to the USB port.
• Allows sharing of hard drives, printing and scanning****

Service quality
• D-Link Smart QoS Technology

Advanced firewall features
• Network Address Translation (NAT)
• State Packet Inspection (SPI)
• IP/MAC address filtering
• Multiple VPN pass-through / PPTP/L2TP/IPSec sessions
• Demilitarized Zone

Router features
• Port forwarding
• Port triggering / Special application support
• Supports static routes
• Support WLAN partition
• DHCP server
• DNS relay

Minimum system requirements
• Windows®7/Vista**/XP SP3 or Mac OS®X(v10.4)***
• Microsoft Internet Explorer 6 and above, Firefox 1.5 and above
• CD-ROM
• Ethernet network interface
• Cable or DSL modem
• Applying for service with an internet service provider
