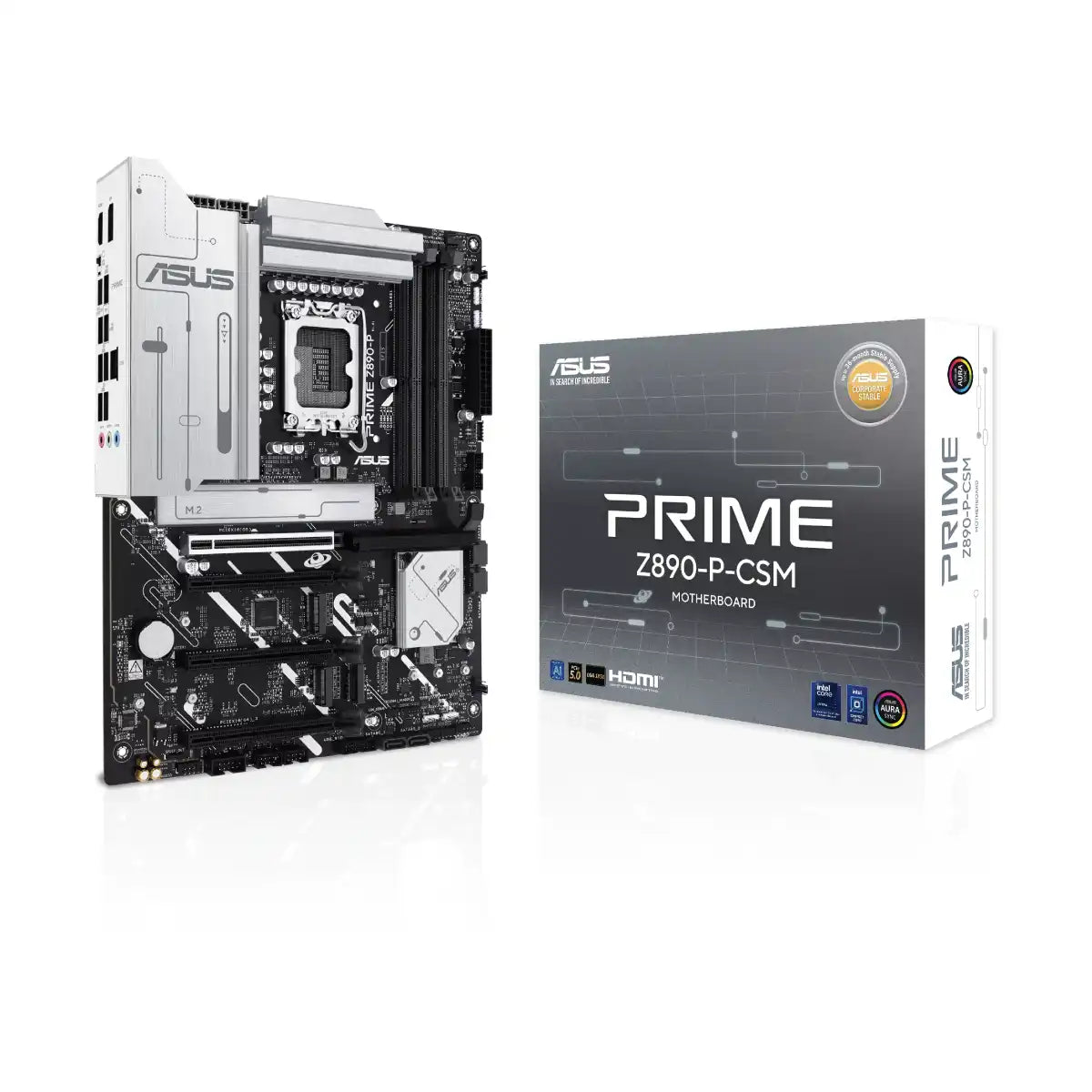

Mainboard Asus PRIME Z890 P CSM DDR5
Mainboard Asus PRIME Z890 P CSM DDR5

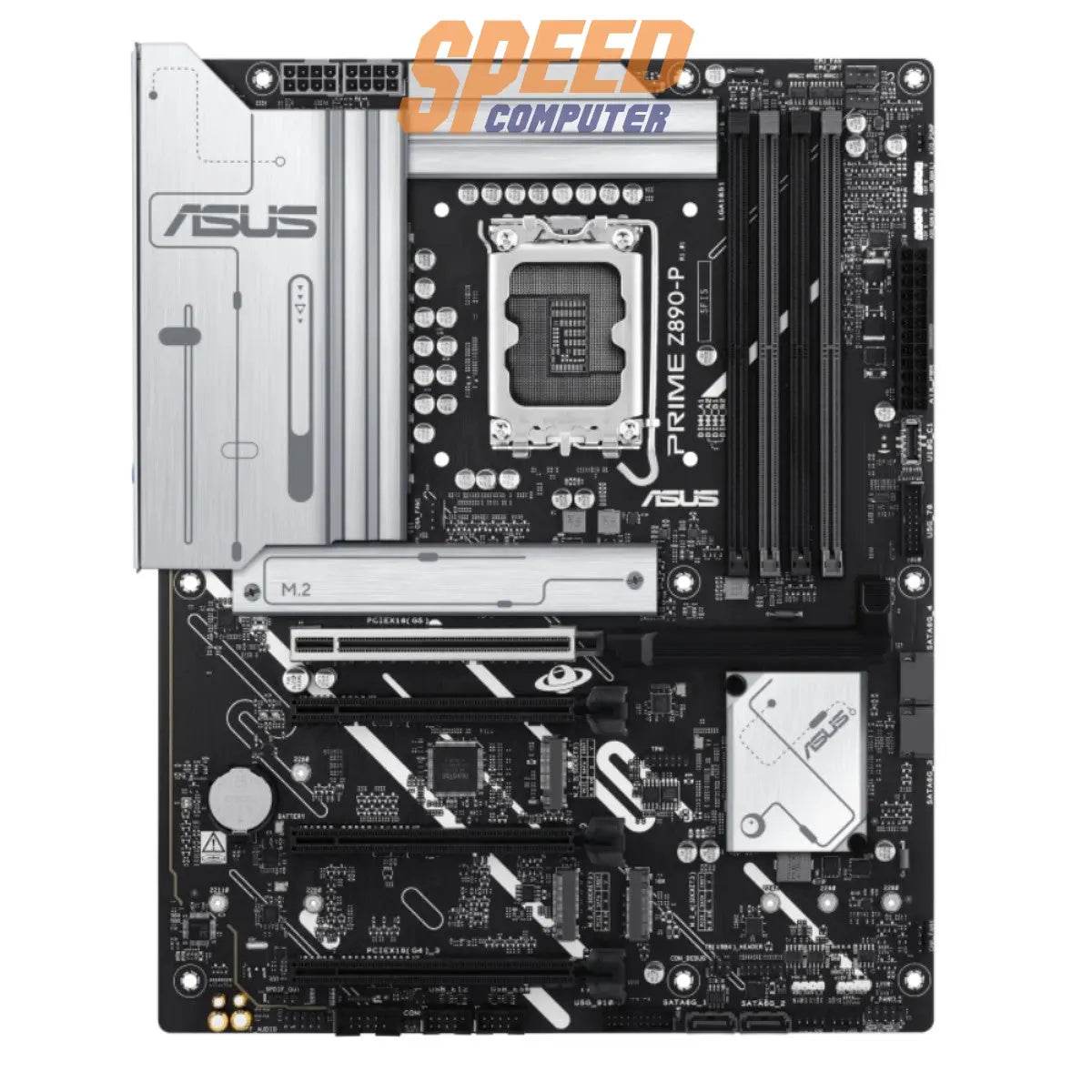

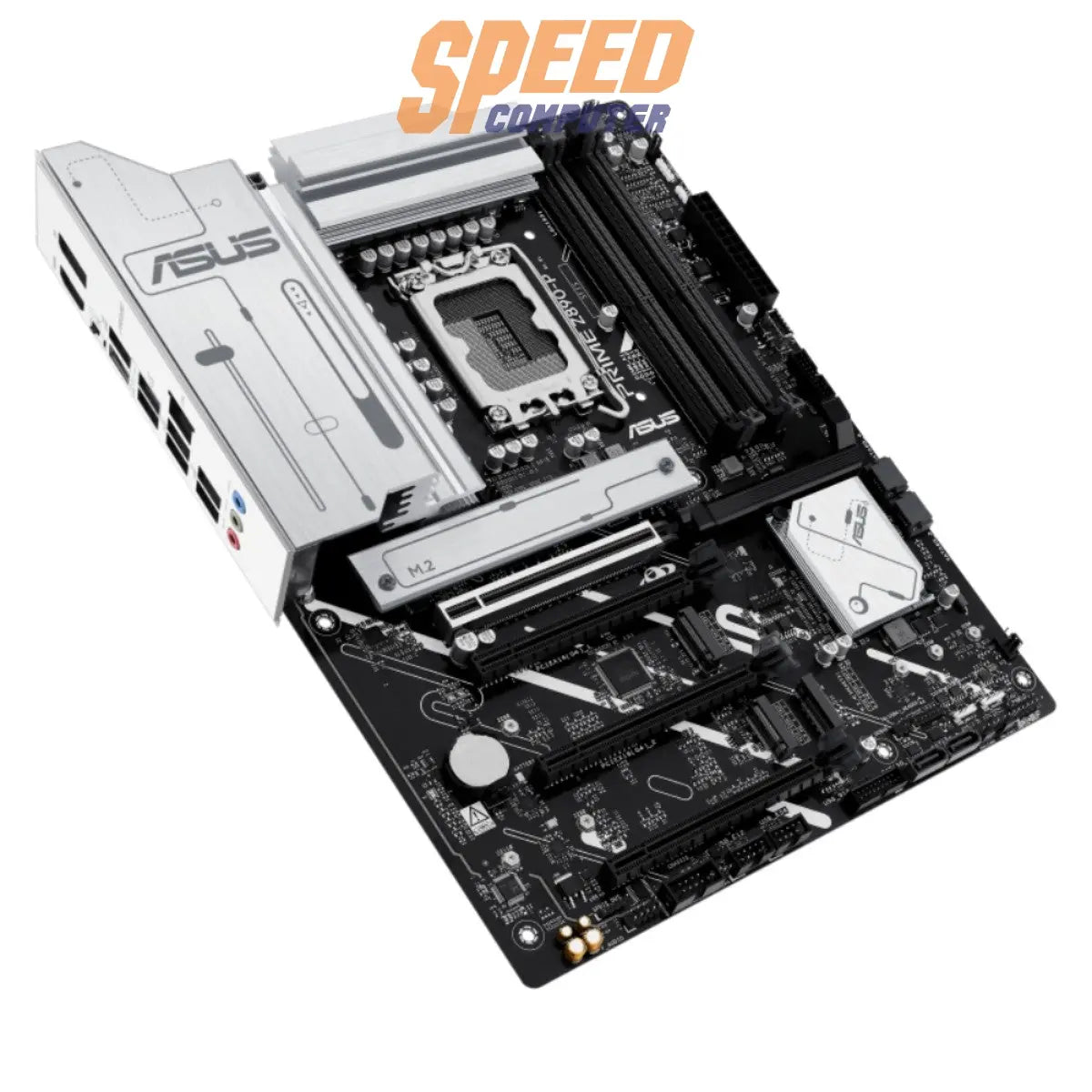

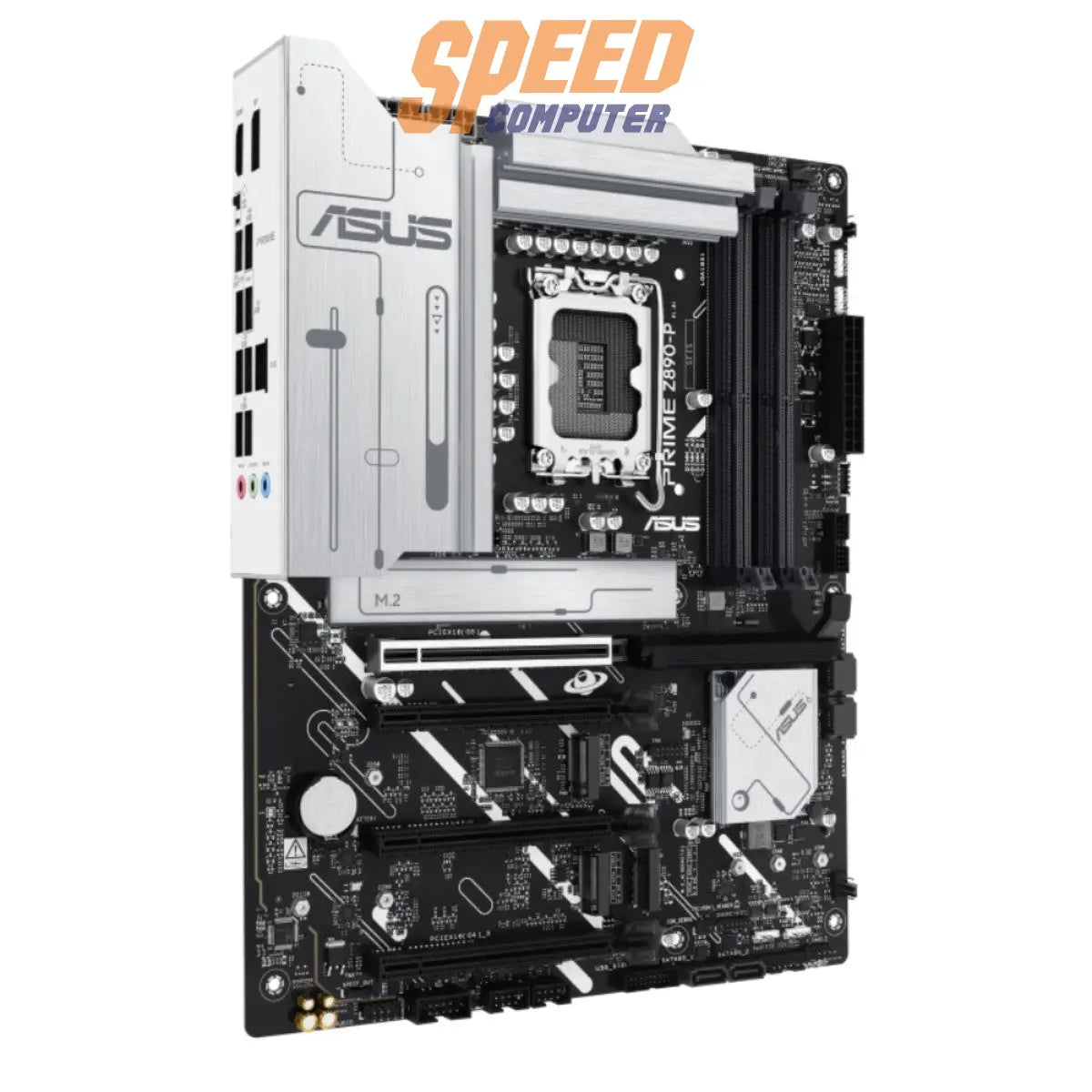

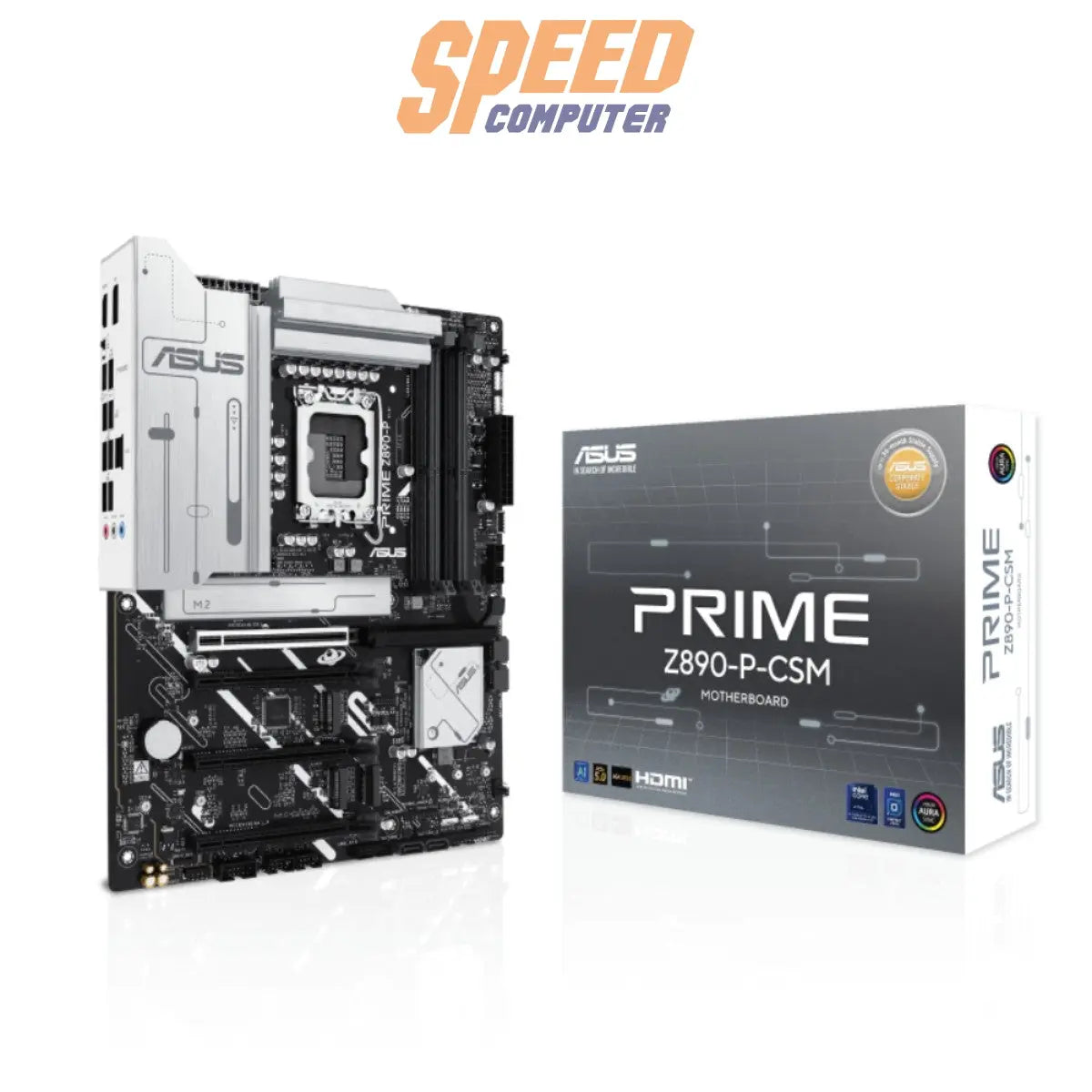

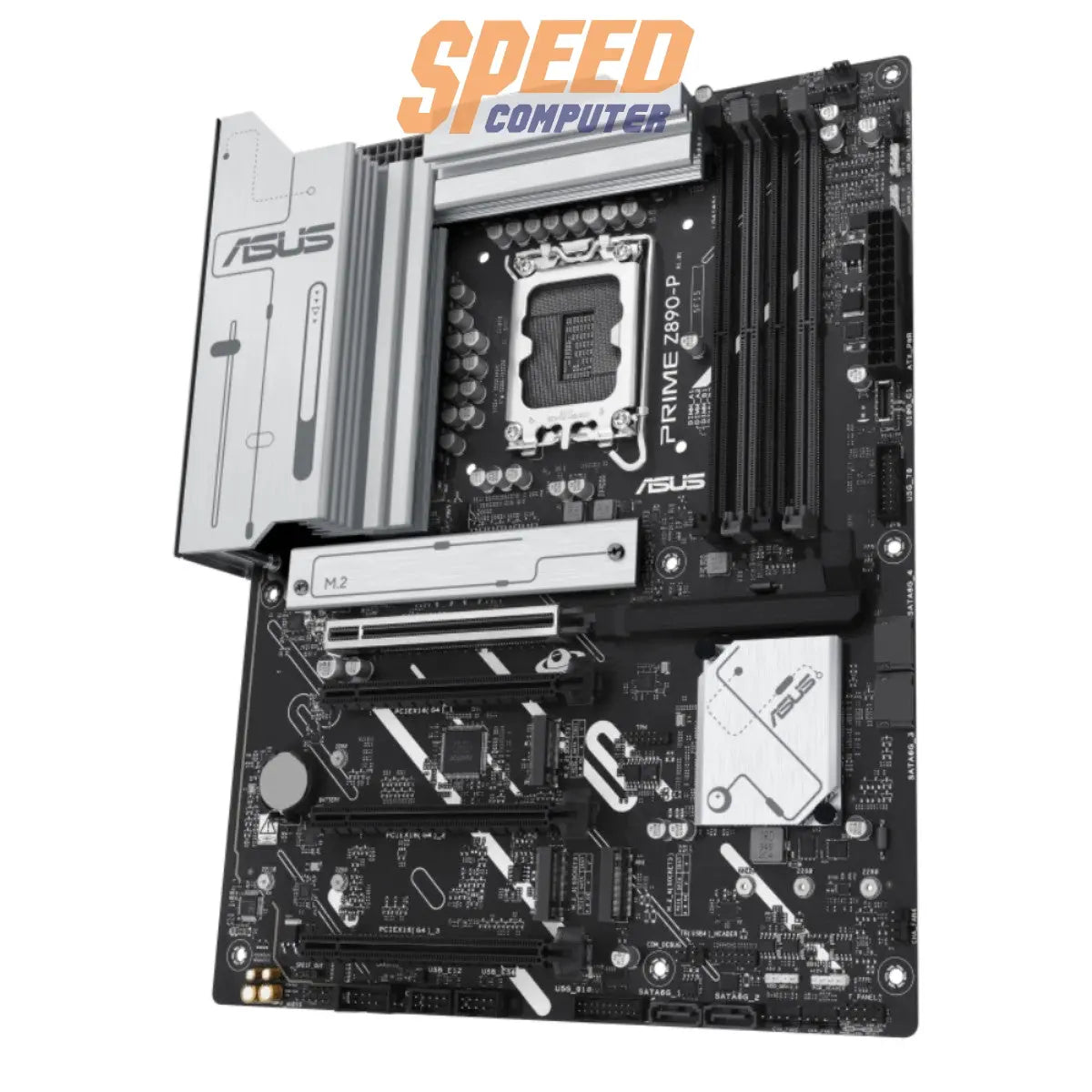

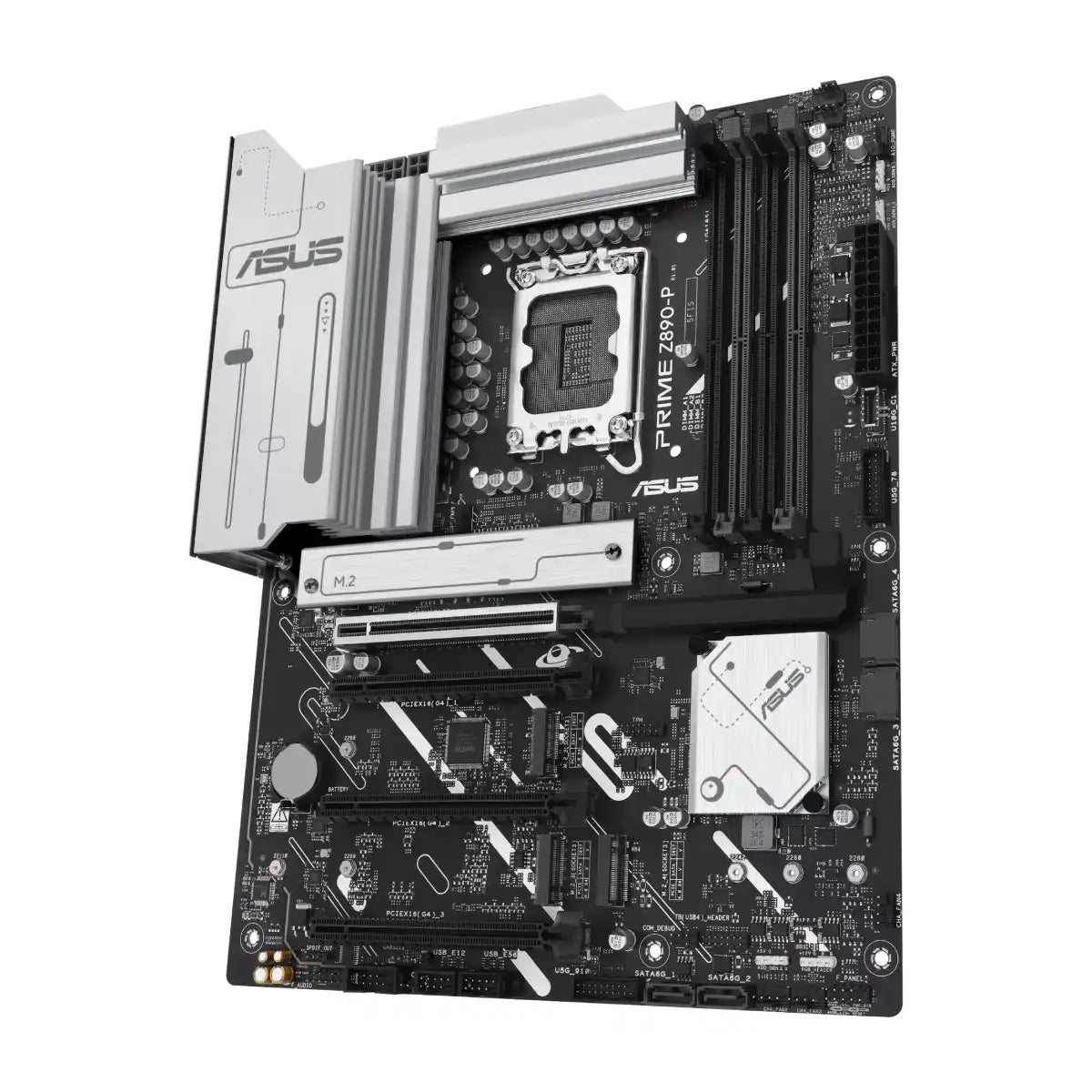

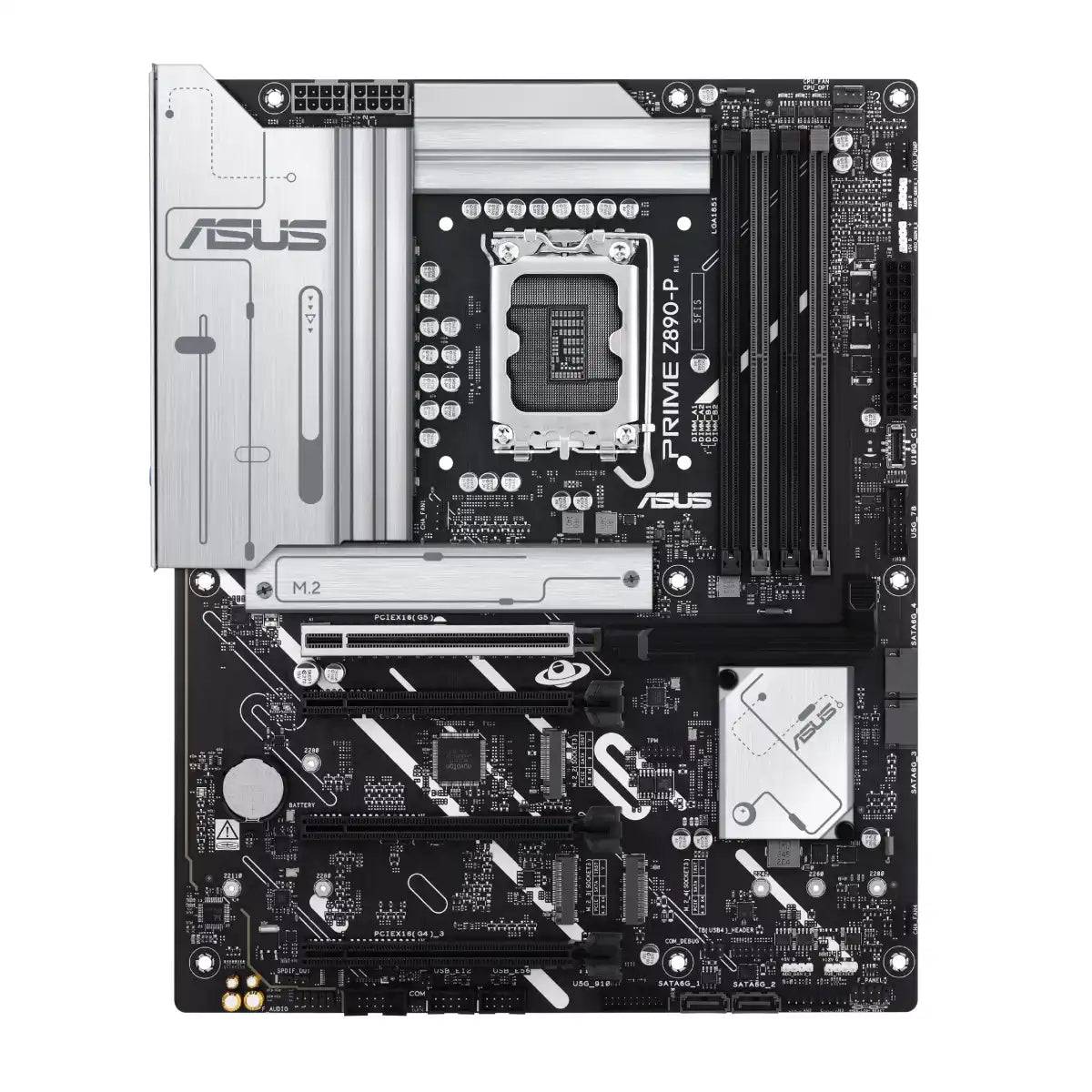

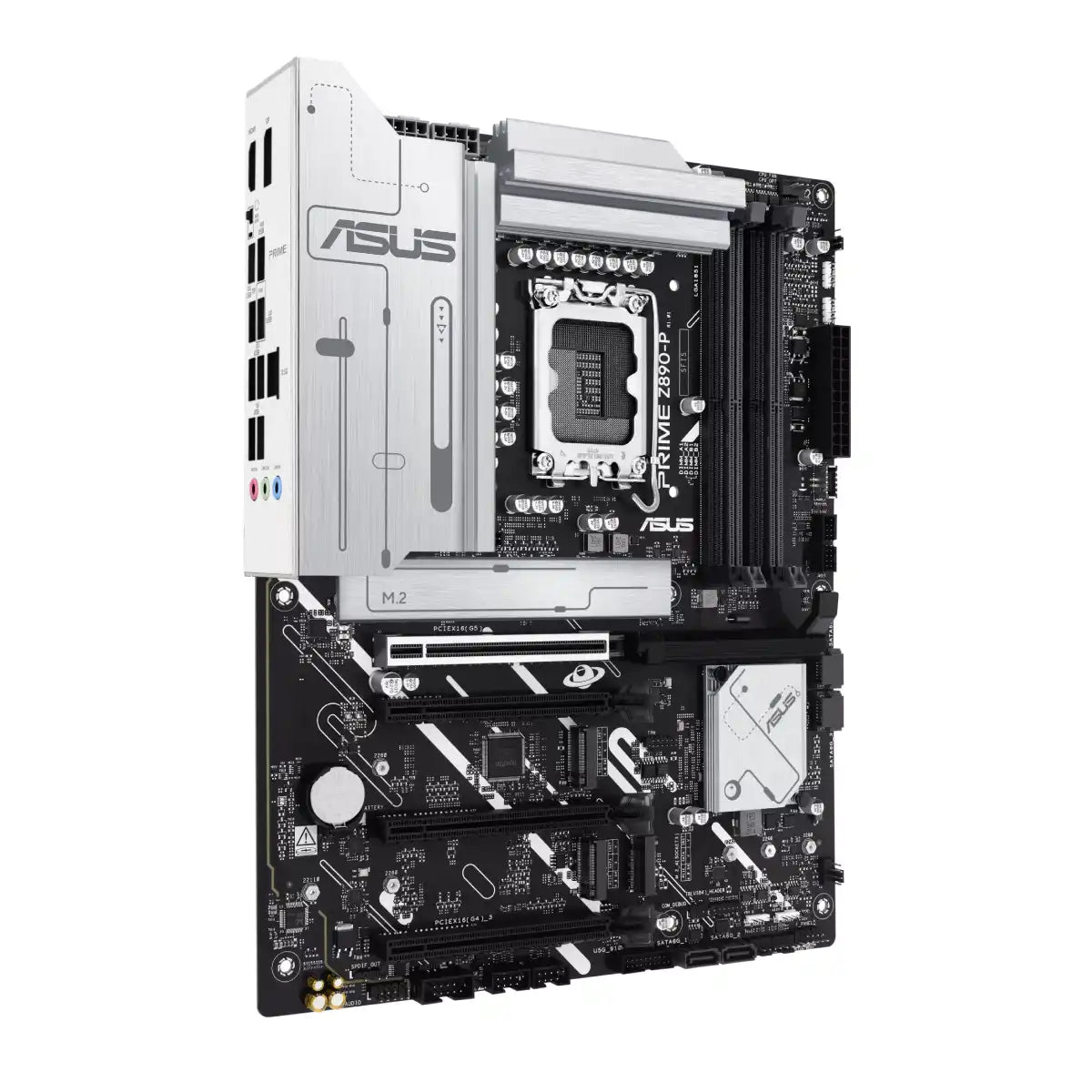

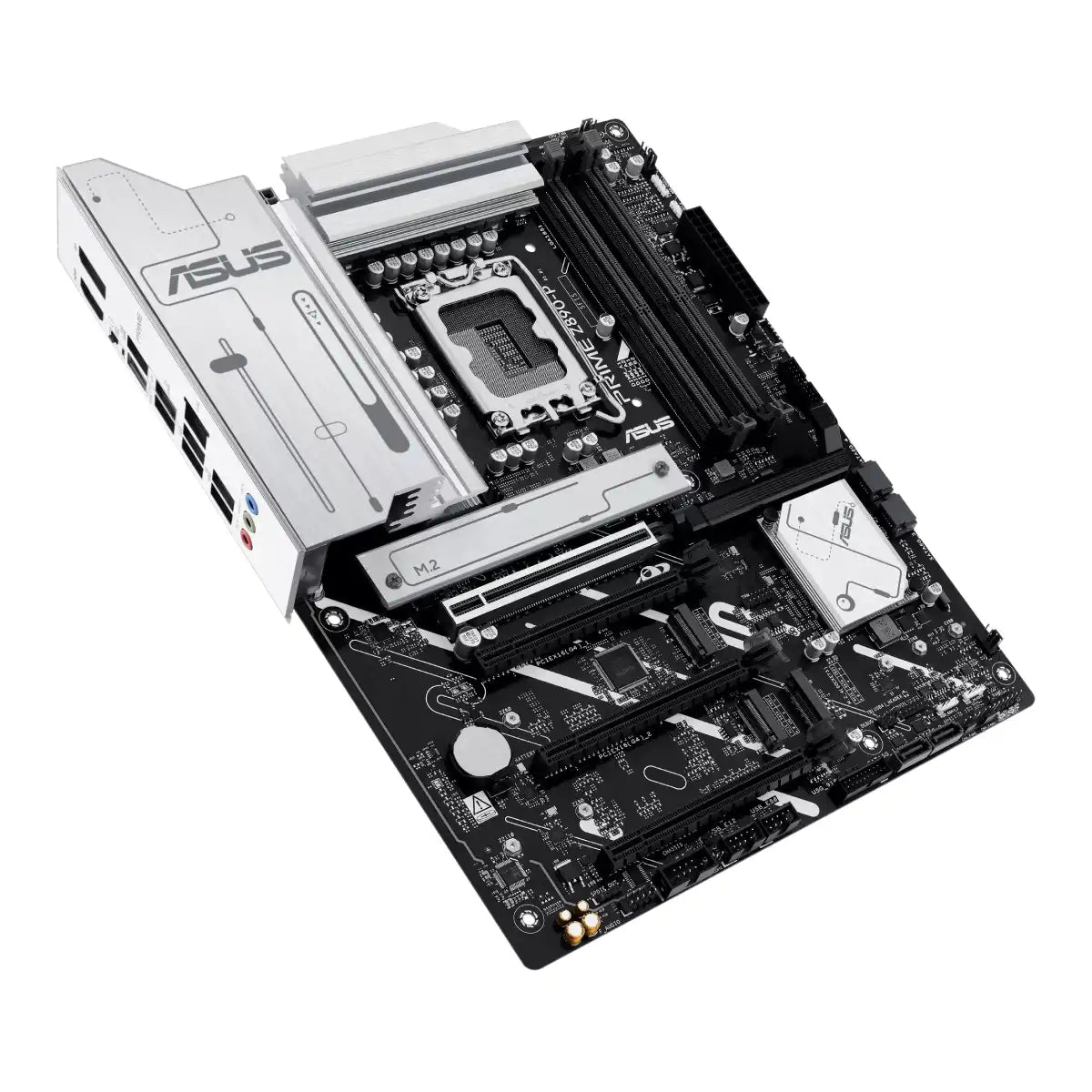

Asus PRIME Z890 P
- Brand: Asus
- Model: PRIME AZ890-P-CSM
- Chipset: Intel Z890 Chipset
- Form Factor: ATX Form Factor 12"x 9.6" ( 30.5 cm x 24.4 cm )
- Socket: 1851
- CPU Supports: Supports Intel Core Ultra Processors (Series 2), LGA1851* , Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
- Memory type: DDR5
- RAM Slots: 4
- Maximum capacity: 192GB
- Supports memory speeds up to: 7600 MHz
- Storage: 4 x M.2 slots and 4 x SATA 6Gb/s ports
- M.2 supports storage types: NVMe, SATA

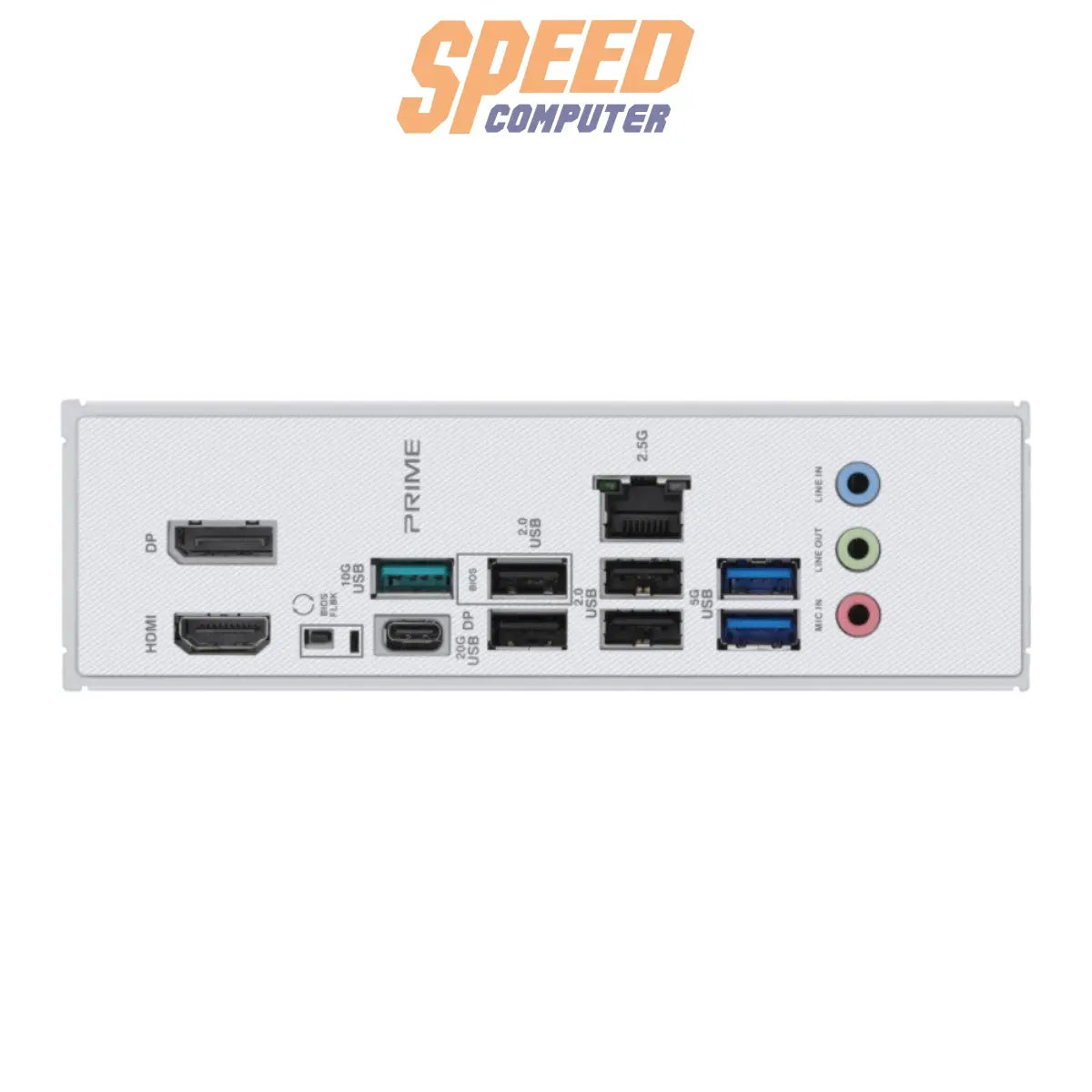

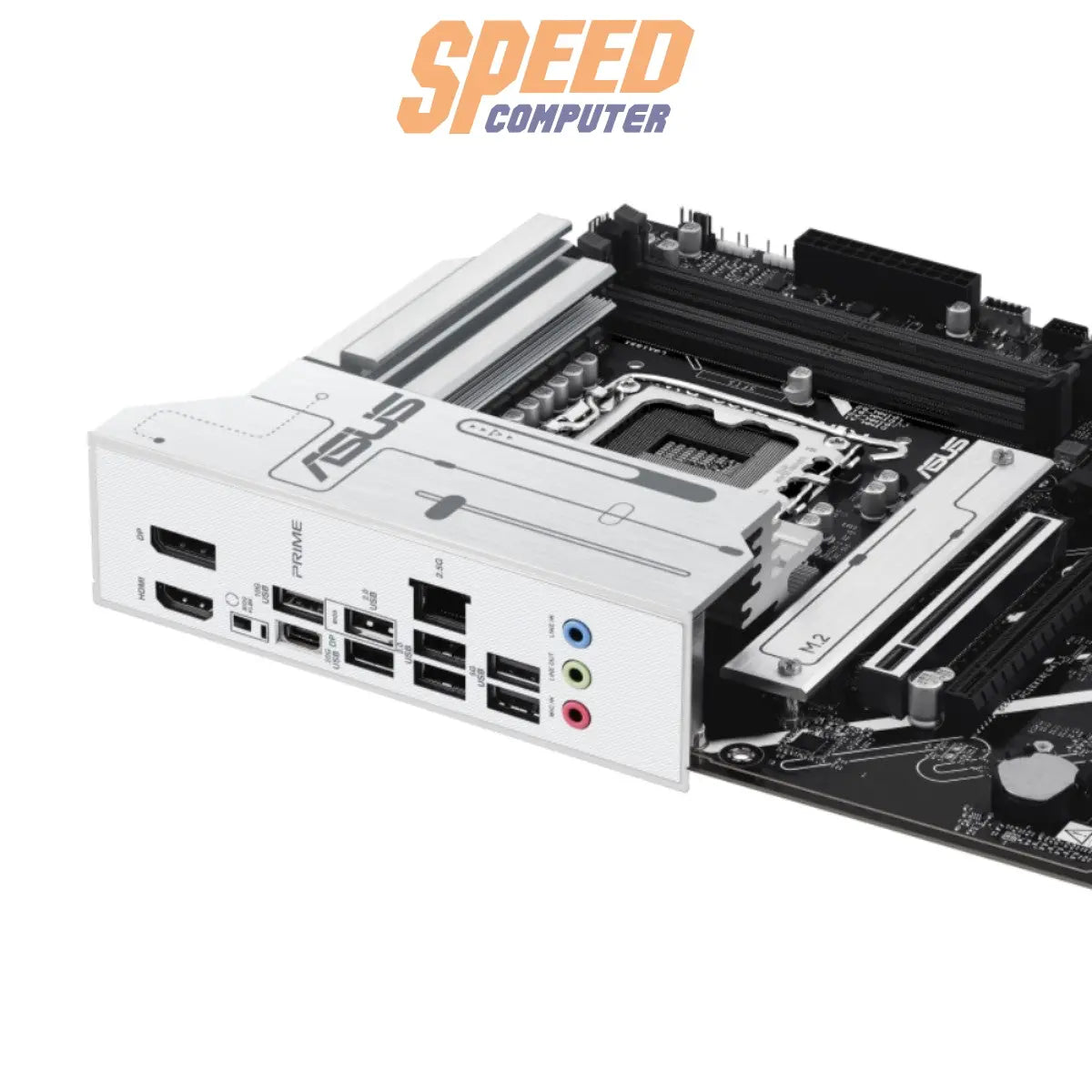

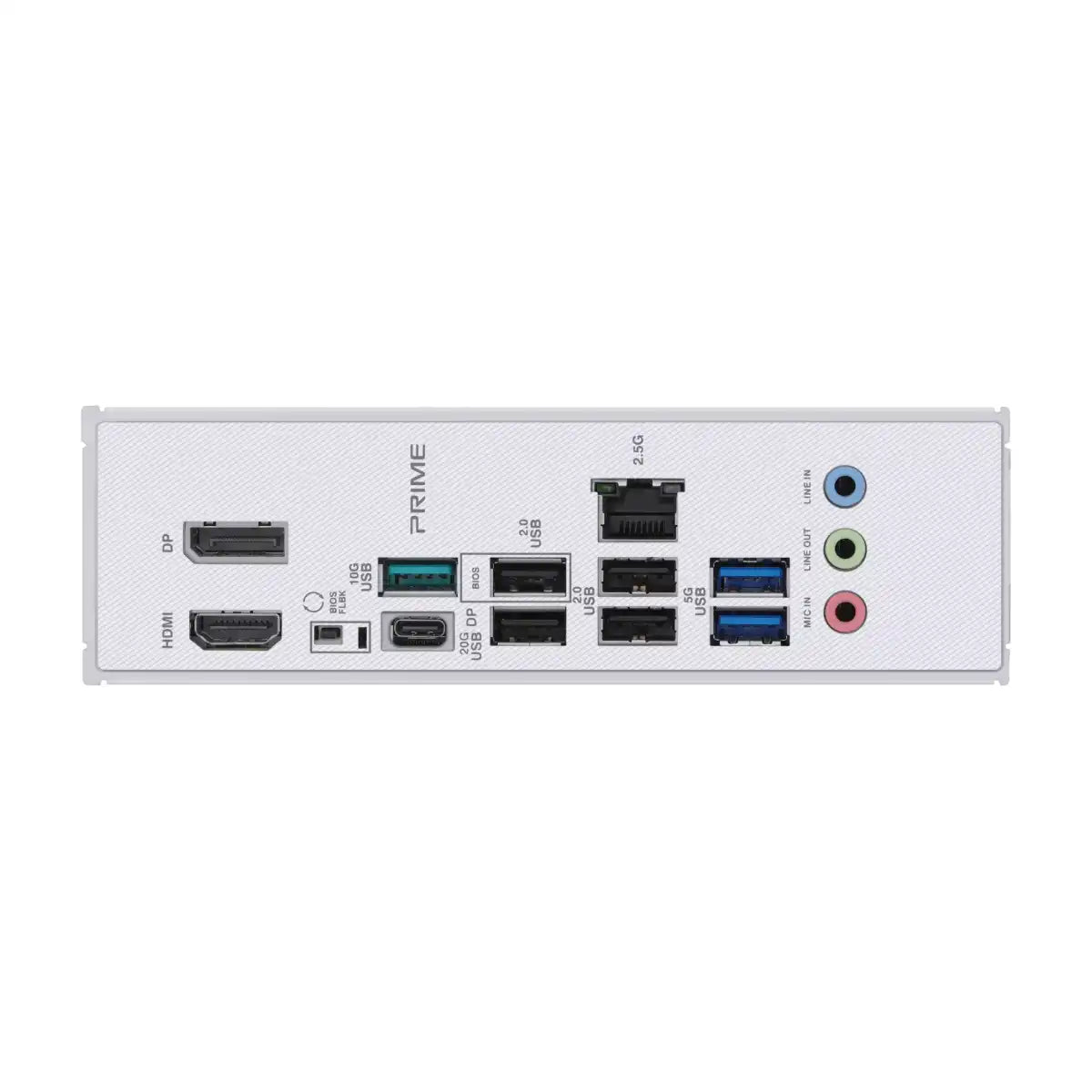

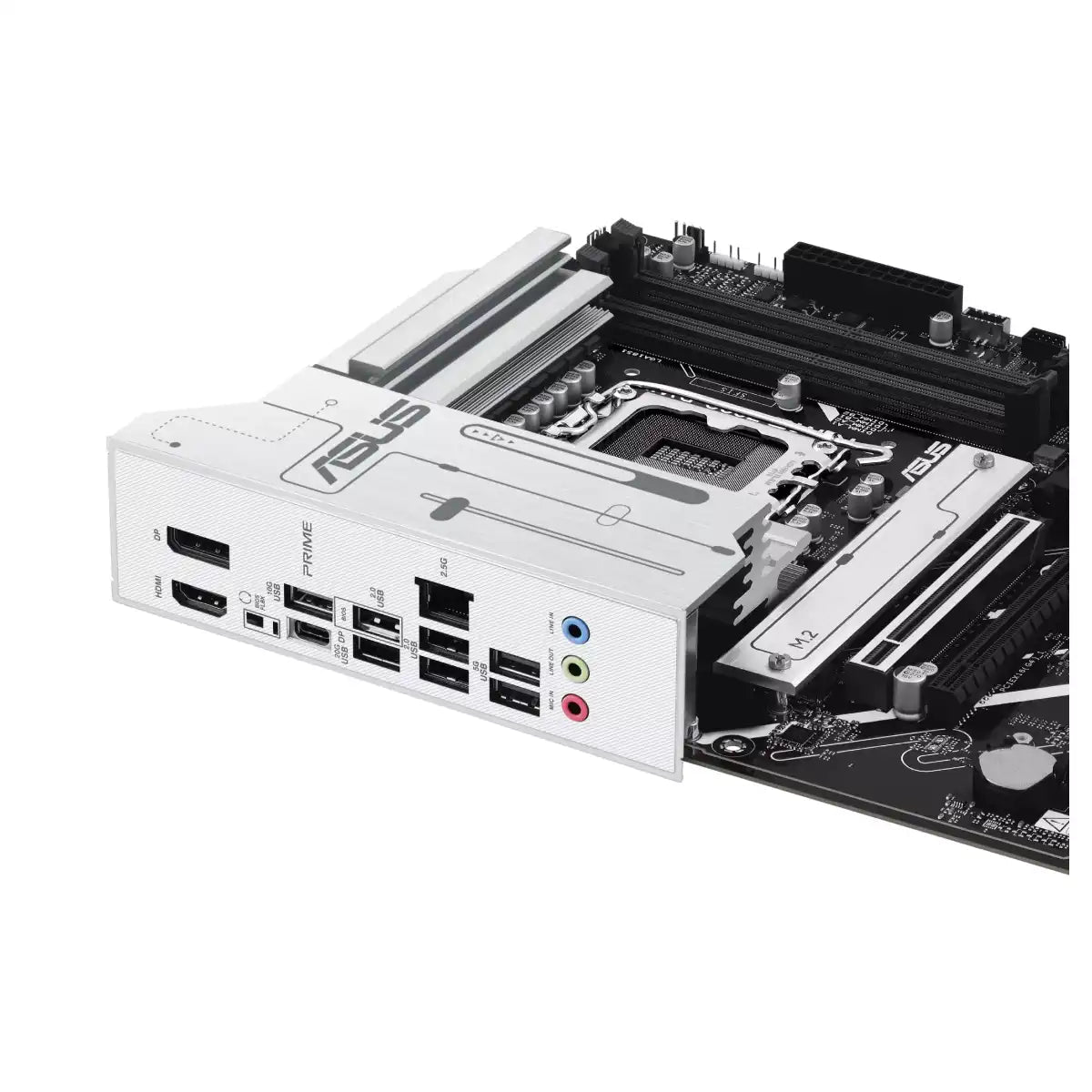

- Rear connection ports:
1 x USB 20Gbps port (1 x USB Type-C with DP Alt mode)
1 x USB 10Gbps port (1 x Type-A)
2 x USB 5Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI port
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x BIOS FlashBack button
- Support operating systems: Support for Windows 11 64-bit, Windows 10 64-bit
- Size (Width x Length x Height): 314.7 x 233.5 x 18.6-22.3 mm.
- Weight: 1.5 KG
- Warranty: 3 Years
Asus PRIME Z890 P CSM DDR5
ASUS PRIME series motherboards are expertly designed to unleash the full potential of the latest Intel Core Ultra processors (2-series). The PRIME Z890-P-CSM motherboard features a robust power design, comprehensive cooling solutions, and intelligent tuning options, enabling users and DIY PC builders to maximize their performance through user-friendly software and firmware features. This motherboard is designed to support advanced AI PCs, delivering the power and connectivity needed for demanding AI applications.
NPU Boost
The integrated NPU in Intel Core Ultra processors efficiently accelerates AI workflows, and NPU Boost lets you do more with it. This BIOS feature overclocks the NPU with a single click, increasing performance by up to 24%.
Robust power design
Stable power is essential for optimum performance of Intel Core Ultra PRIME processors. The Z890-P-CSM is designed to meet the demands of high-core CPUs, featuring 14(80A) + 1(80A) + 2(80A) + 1(80A) power stages that integrate high-side and low-side MOSFETs and drivers into a package capable of handling up to 80A per package. This configuration provides efficient, stable, and efficient power delivery for Intel processors.
AEMP III for Ultimate DDR5 Performance
ASUS Enhanced Memory Profile III (AEMP III) is an advanced firmware feature that enables users to get the most out of their CUDIMM memory. Through a comprehensive two-phase tuning process, AEMP III first fine-tunes the driver clock and then the memory frequency, resulting in the best balance of performance and stability, even at cutting-edge DDR5-7600 speeds or beyond.
Four M.2 slots (up to 128Gbps)
The PRIME Z890-P-CSM features four M.2 slots, with one slot supporting data transfer speeds of up to 128Gbps via PCIe 5.0 and three slots supporting 64Gbps via PCIe 4.0, enabling faster boot-up and app loading with the operating system or app drive.
PCIe Slot Q-Release
The innovative ASUS Q-Latch makes installing or removing an M.2 SSD a breeze, without the need for tools or special screws. The design uses a simple locking mechanism to secure the drive and remove it neatly with a single tap.
