SpeedCom  |  SKU: ASUS-PRIME-Z890M-PLUS-WIFI-CSM

Mainboard Asus Prime Z890M PLUS WIFI CSM DDR5 LGA 1851 Micro ATX

9,800.00 ฿

Care information

Exchange available within 7 days of receipt if conditions apply

1. The warranty applies only in cases where the product is damaged due to a malfunction resulting from a manufacturing defect

2. Dead pixel warranty applies for Laptop products and computer monitors with 5 or more dead pixels

3. The store delivered the wrong product

Authentic product with official warranty: 3 Years Warranty

Payment

Payment

  • Bank Deposit
  • Full Payment via Credit Card (All Major Banks Accepted)
  • Cash on Delivery (COD)

Delivery and Shipping

Delivery

  • Express Delivery within 3 Hours Service fee 300 THB
    (Available only in Bangkok, Metropolitan Area, and Chiang Mai city)
  • Domestic shipping packed and delivered by Best Express
  • Pick up your order at the nearest branch

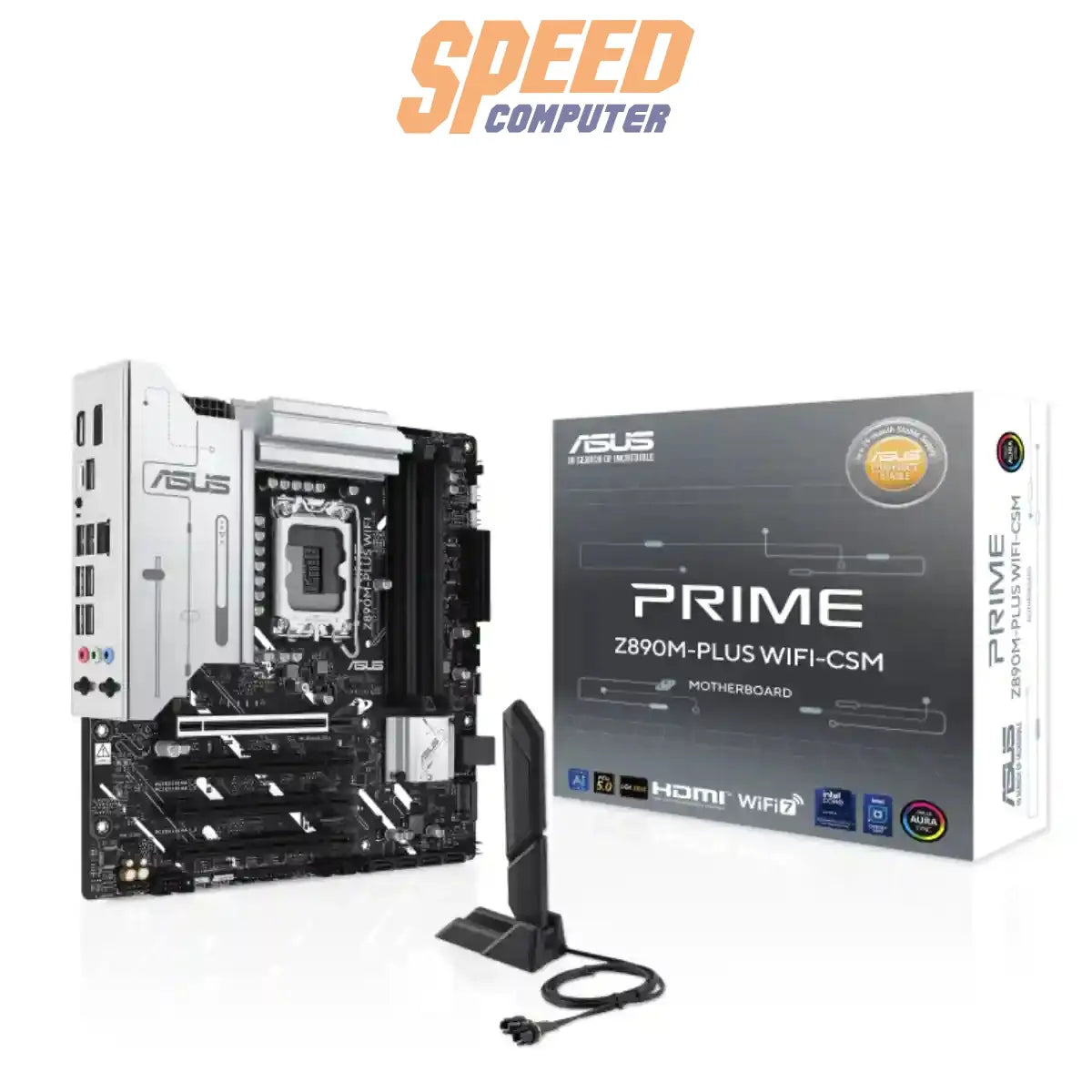

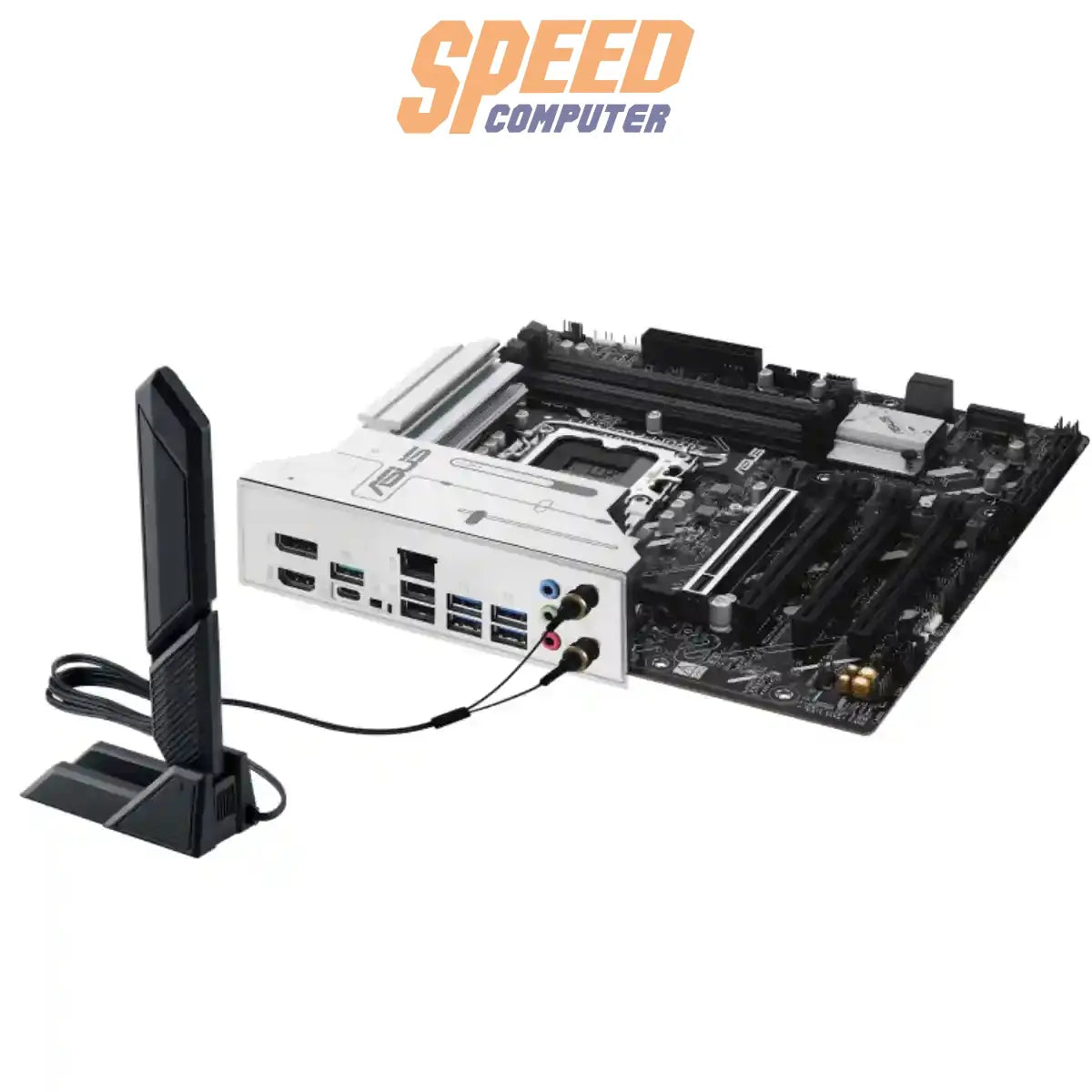

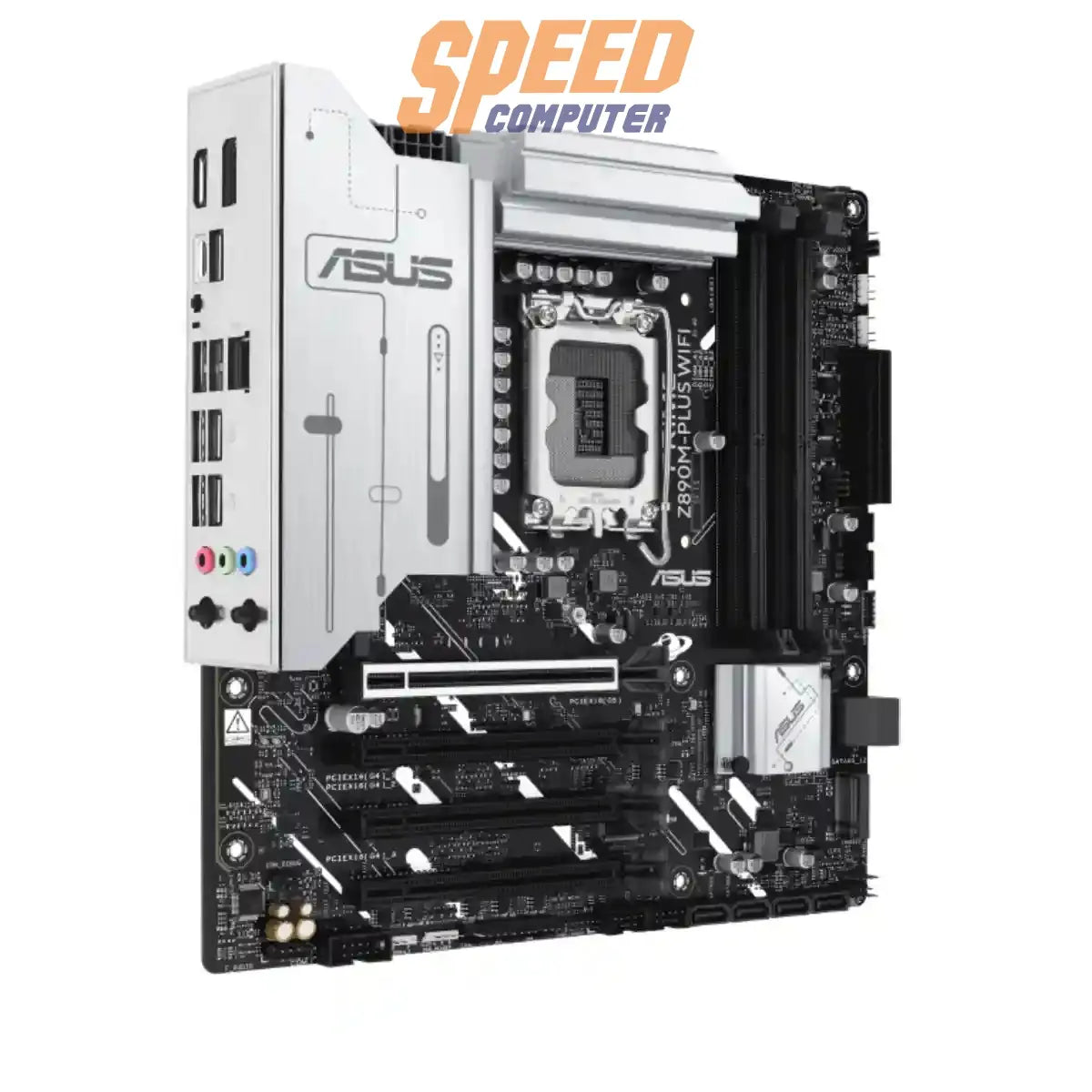

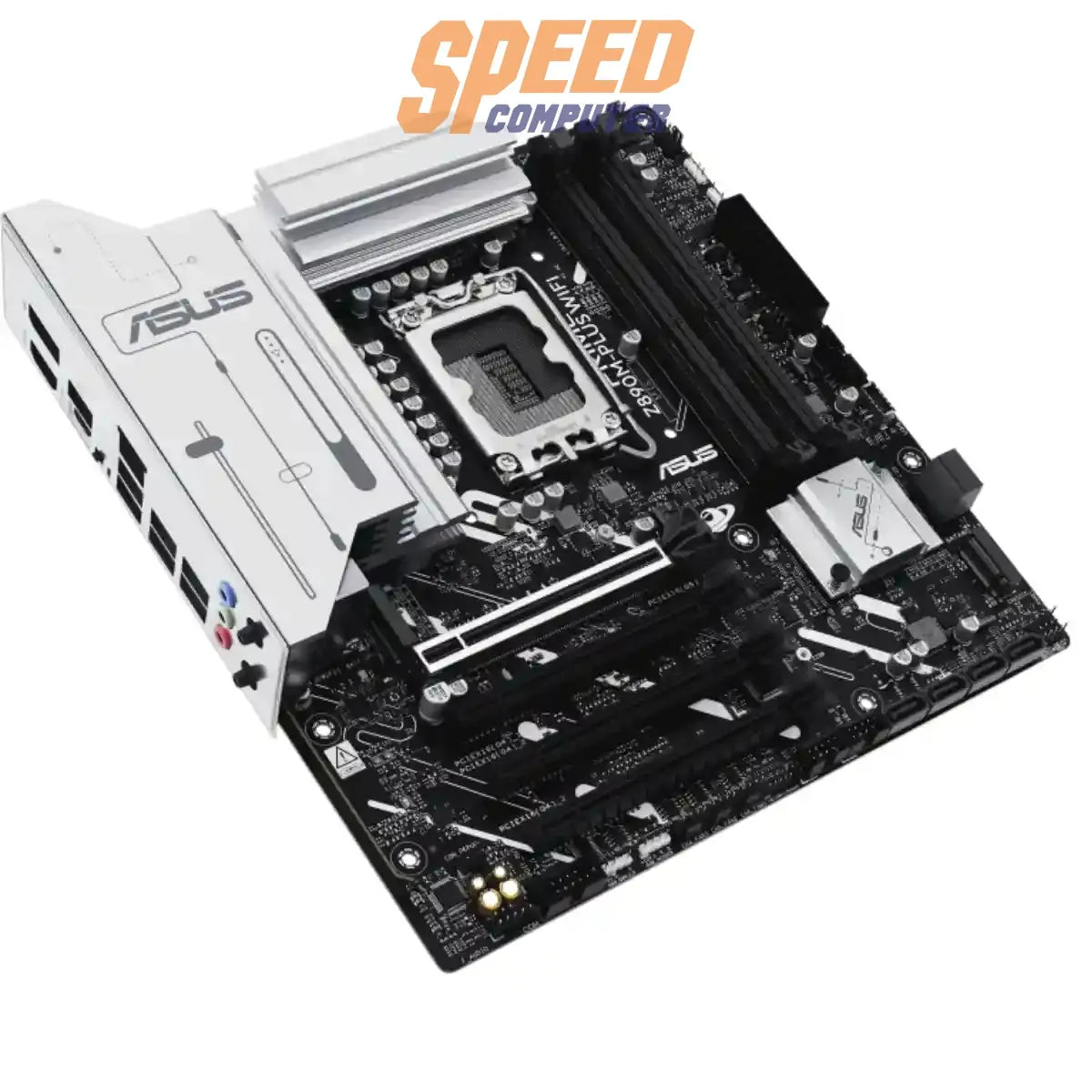

Mainboard Asus Prime Z890M PLUS WIFI CSM DDR5 LGA 1851 Micro ATX

Asus Prime Z890M PLUS WIFI CSM

  • Brand: Asus
  • Model: PRIME Z890M-PLUS WIFI-CSM
  • Chipset: Intel Z890
  • Form factor: Micro-ATX
  • Socket: LGA 1851
  • Supported CPUs: Intel Core Ultra Processors (Series 2)
  • Memory type: DDR5
  • RAM Slots: 4
  • Maximum capacity: 256GB
  • Supports memory speeds up to: 8666+ MHz (OC)
  • Storage: 6 x SATA 6Gb/s, 2 x M.2
  • M.2 supports storage type: PCIe 4.0/3.0

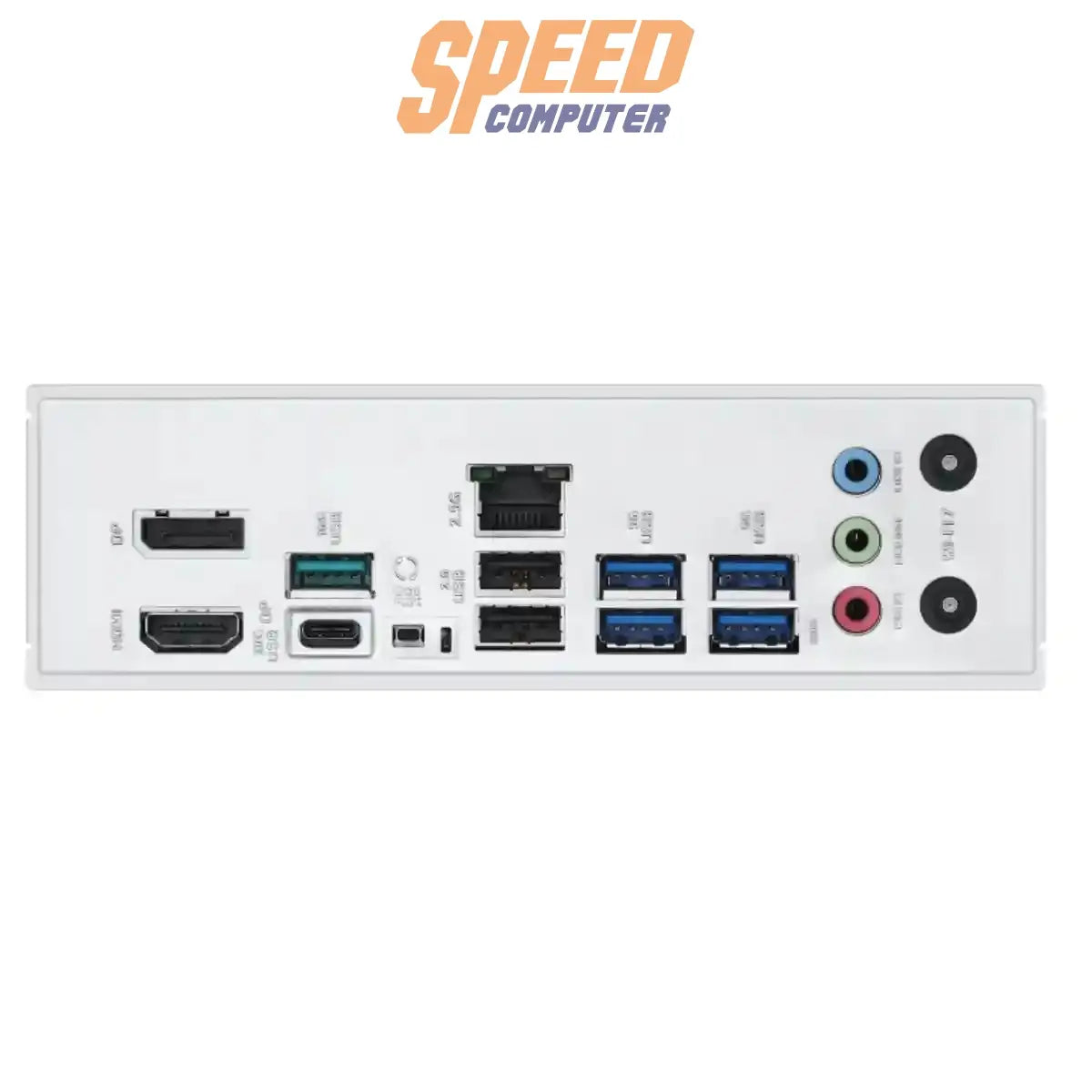

  • Rear connectivity: 1 x HDMI, 1 x DisplayPort, 1 x 2.5Gb Ethernet, 4 x USB 3.2 Gen 1, 1 x USB 3.2 Gen 2 Type-C, 2 x USB 2.0, 1 x Audio Jack
  • Supported operating systems: Windows 10, Windows 11
  • Wi-Fi 7: 2x2 Wi-Fi 7 (802.11be)
    Supports 2.4/5/6GHz frequency bands
    Up to 2.9Gbps transfer rate with 160MHz bandwidth
    Wi-Fi 6GHz band and bandwidth may vary by country
  • Bluetooth: v5.4
    Wi-Fi features vary by OS
    Windows 11 requires version 24H2 or later for full Wi-Fi 7 support (older versions only support Wi-Fi 6E)
    No driver available for Windows 10; check chipset vendor for details
  • Size (Width x Length x Height): 24.4 x 24.4 cm
  • Weight: 1.2 kg
  • Warranty: 3 Years

Asus Prime Z890M PLUS WIFI CSM DDR5 LGA 1851 Micro ATX

AEMP III for maximum DDR5 performance

ASUS Enhanced Memory Profile III (AEMP III) is an advanced firmware feature that enables users to get the most out of their CUDIMM memory. Through a comprehensive two-phase tuning process, AEMP III first fine-tunes the driver clock and then the memory frequency, resulting in the best balance of performance and stability, even at cutting-edge DDR5-7600 speeds or beyond.

3 M.2 slots (up to 128Gbps)

The PRIME Z890M-PLUS WIFI-CSM has three M.2 slots in total, with one slot supporting data transfer speeds of up to 128Gbps via PCIe 5.0 and the other two slots supporting 64Gbps via PCIe 4.0, allowing for faster boot-up and app loading with the operating system or app drive.

Robust energy design

Stable power is essential for optimum performance of Intel Core Ultra (2-Series) processors. The PRIME Z890M-PLUS WIFI-CSM is designed to meet the demands of high-core CPUs. This processor features 10(80A) + 1(80A) + 2(80A) + 1(80A) power stages that integrate high-side and low-side MOSFETs and drivers into a package that can handle up to 80A per package. This configuration ensures optimal power delivery, efficiency, stability, and performance for Intel processors.

DIMM fits

DIMM Fit is an exclusive ASUS BIOS feature that precisely analyzes each memory module to optimize performance and identify potential issues. This feature provides maximum performance, compatibility, and system stability. Whether you're an overclocker looking for maximum performance, a competitor seeking the most responsive gameplay, or a content creator who values utmost stability, DIMM Fit provides customized tuning to suit your needs and hardware configurations.

Cooling by design

The PRIME Z890M-PLUS WIFI-CSM motherboard is designed with multiple onboard heatsinks and multiple hybrid fan headers to ensure your system stays cool and stable under heavy loads.
