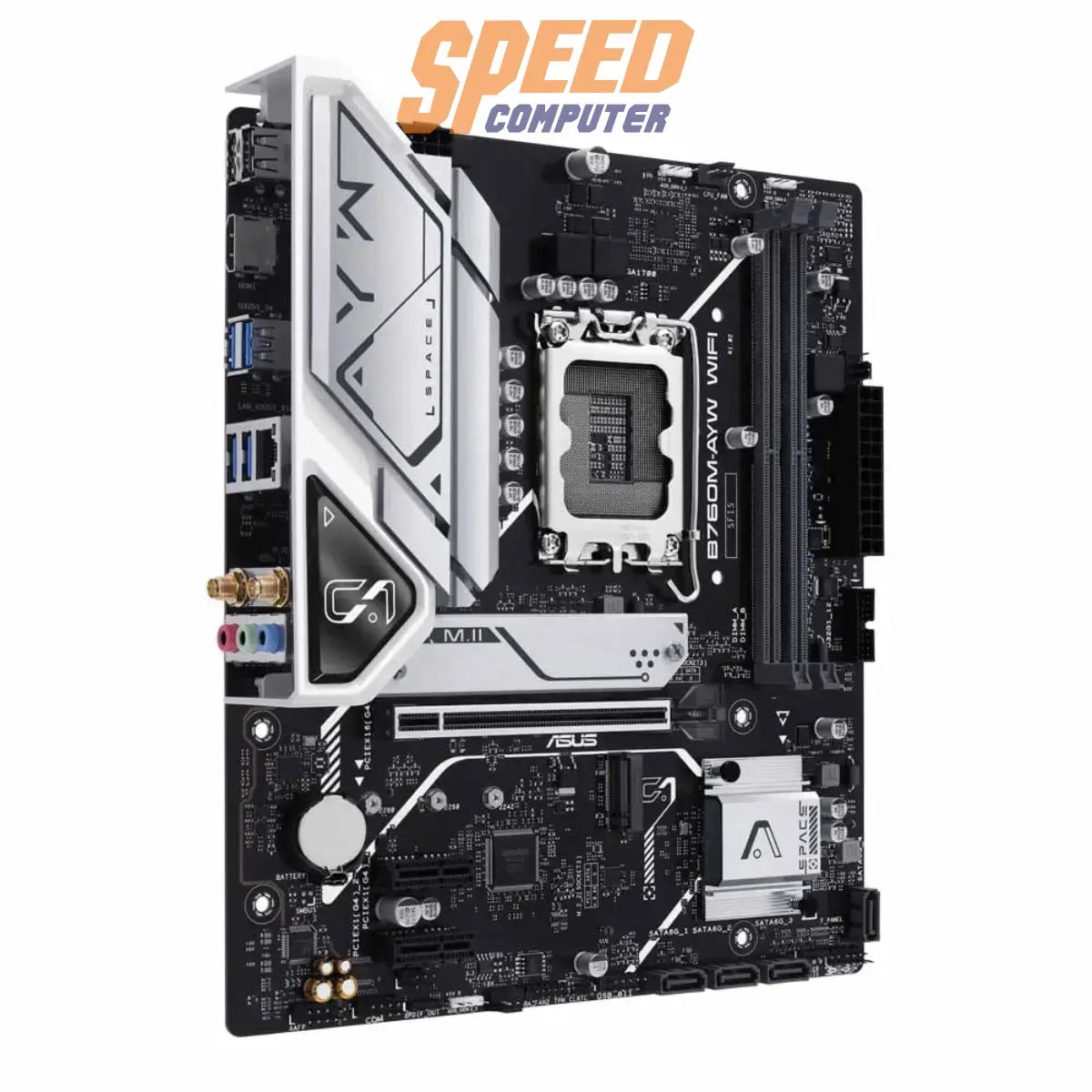

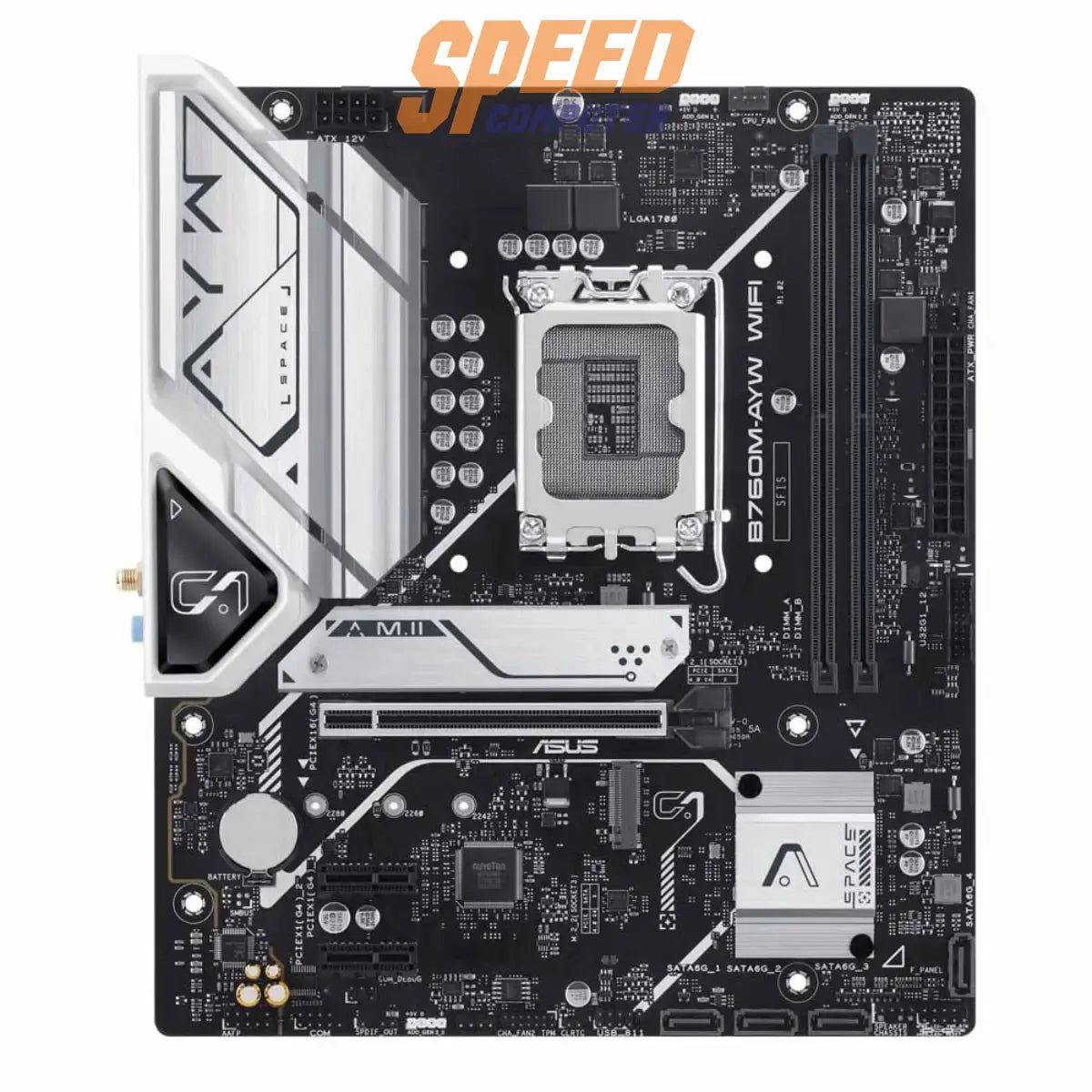

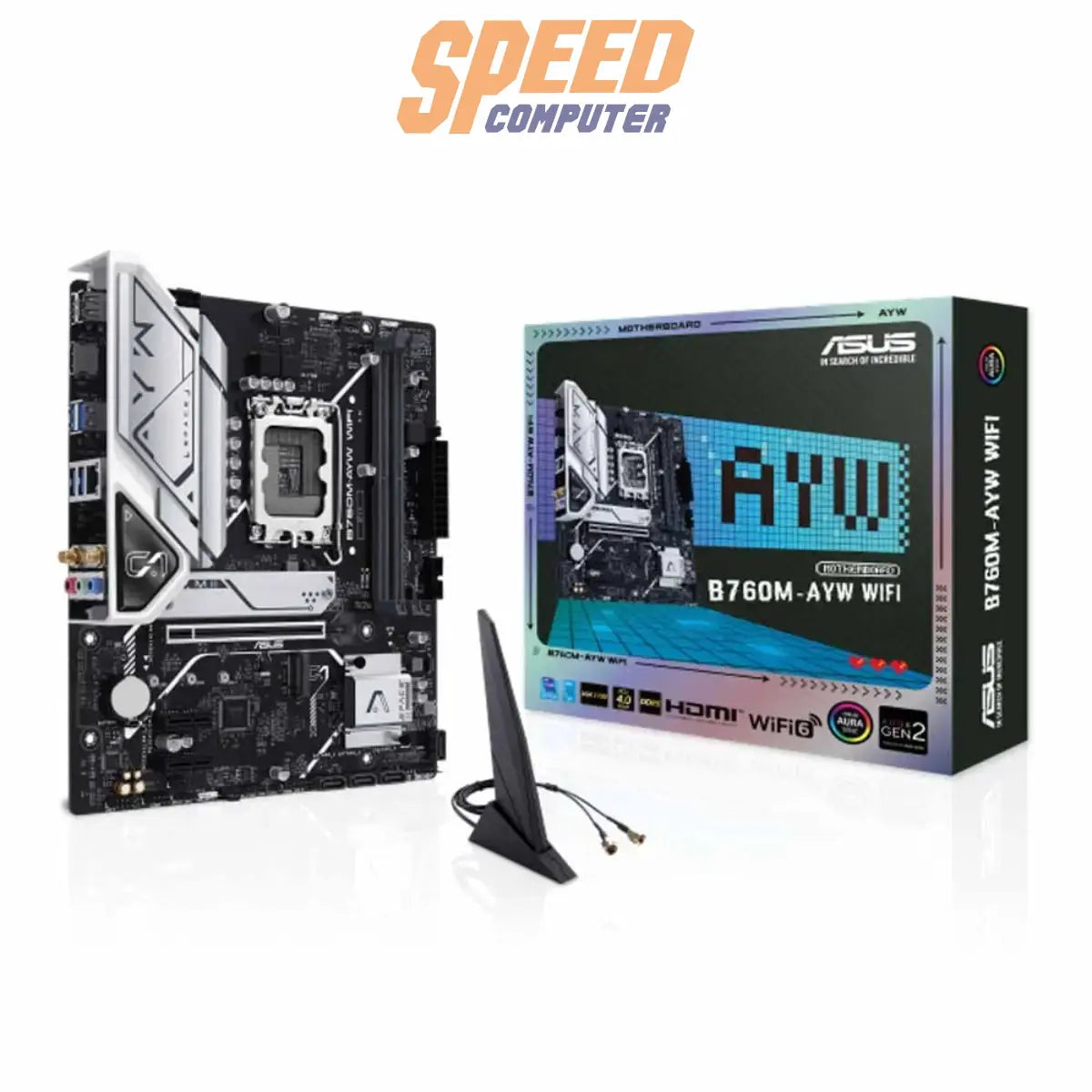

Mainboard Asus B760M-AYW WIFI DDR5 LGA1700 Micro ATX
Mainboard Asus B760M-AYW WIFI DDR5 LGA1700 Micro ATX
Asus B760M-AYW WIFI DDR5
- Brand: Asus
- Model: B760M-A
- Chipset: INTEL B760
- Form factor: Micro ATX
- Socket: LGA1700
- Support CPU: Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors
- Memory type: DDR5
- RAM Slots: 4
- Maximum capacity: 128GB
- Supports memory speeds up to: 7200 MHz
- Storage: 2 x M.2, 4 x SATA 3
- M.2 supports storage type: NVMe
- Network: Realtek 2.5Gb Ethernet
- LAN Speed: 100/1000/2500 Mbps
- Wireless:
Wi-Fi 6
Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
Supports 2.4/5GHz frequency bands
Bluetooth v5.3 - Rear connectivity: 2 x HDMI, 1 x VGA, 4 x USB 2.0, 2 x USB 3.2, 3 x Audio, 1 x PS/2, 1 x LAN , 1 x Wi-Fi Module
- Support operating systems: Support for Windows 11 64-bit, Windows 10 64-bit
- Size (W x L x H): 270mm x 270mm x 63mm
- Weight: 1.5 KG
- Warranty: 3 Years
Asus B760M-AYW WIFI DDR5 LGA1700 Micro ATX
M.2 heatsink
The M.2 heatsink prevents slowdown that can occur with the M.2 storage during continuous data transfer. The heatsink is held in place with a retaining screw, and these removable screws reduce the risk of dropping or losing the heatsink when removing it.
AEMP II for maximum DDR5 performance
ASUS Enhanced Memory Profile II (AEMP II) is a firmware feature exclusive to PMIC-limited memory modules. AEMP II uses the capabilities of the CPU and memory module to train the memory chips on your build and deliver optimal clock speeds that can easily unleash performance.
AEMP II is built with a flexible training methodology, allowing not only memory tuning beyond the baseline setting, but also maintaining system performance stability, whether to get the most out of the entry-level module or prepare a high-speed set for maximum performance.
*Results may vary depending on the capabilities of your CPU and memory module.
**Comparison table based on testing with Intel® i9-13900K processor and 2x16 GB SK Hynix DDR5-4800 non-ECC UDIMM model HMCG78MEBUA081N.
***Please ensure that all memory modules are from a single validated kit. Do not combine DIMMs from different kits, even if they are the same make and model. Mixing and matching DIMMs may result in a system failure and compatibility is not guaranteed.
****Always install DIMMs with the same CAS latency. For maximum compatibility, we recommend that you install memory modules of the same version or date code (D/C) from the same vendor. Check with your retailer for the correct memory modules.
Two M.2 slots (up to 64 Gbps)
The B760 motherboard features a total of two M.2 slots, supporting data transfer speeds of up to 64 Gbps via PCIe 4.0, enabling faster boot-up and app loading with the operating system or application drive.
*The actual data transmission speed will be lower than the theoretical maximum speed.
PCIe 4.0 slots
The B760 motherboard is specifically designed for 14th, 13th, and 12th Gen Intel® CPUs and supports PCIe 4.0 connectivity for the latest GPUs.
Wi-Fi 6
The WiFi 6 module supports the 802.11ax standard and delivers theoretical maximum bandwidth of up to 1.2Gbps. More importantly for power users, the module is optimized for more efficient operation on dense and highly competitive networks. Pair your motherboard with an ASUS WiFi 6 router to experience the full networking potential of WiFi 6.
