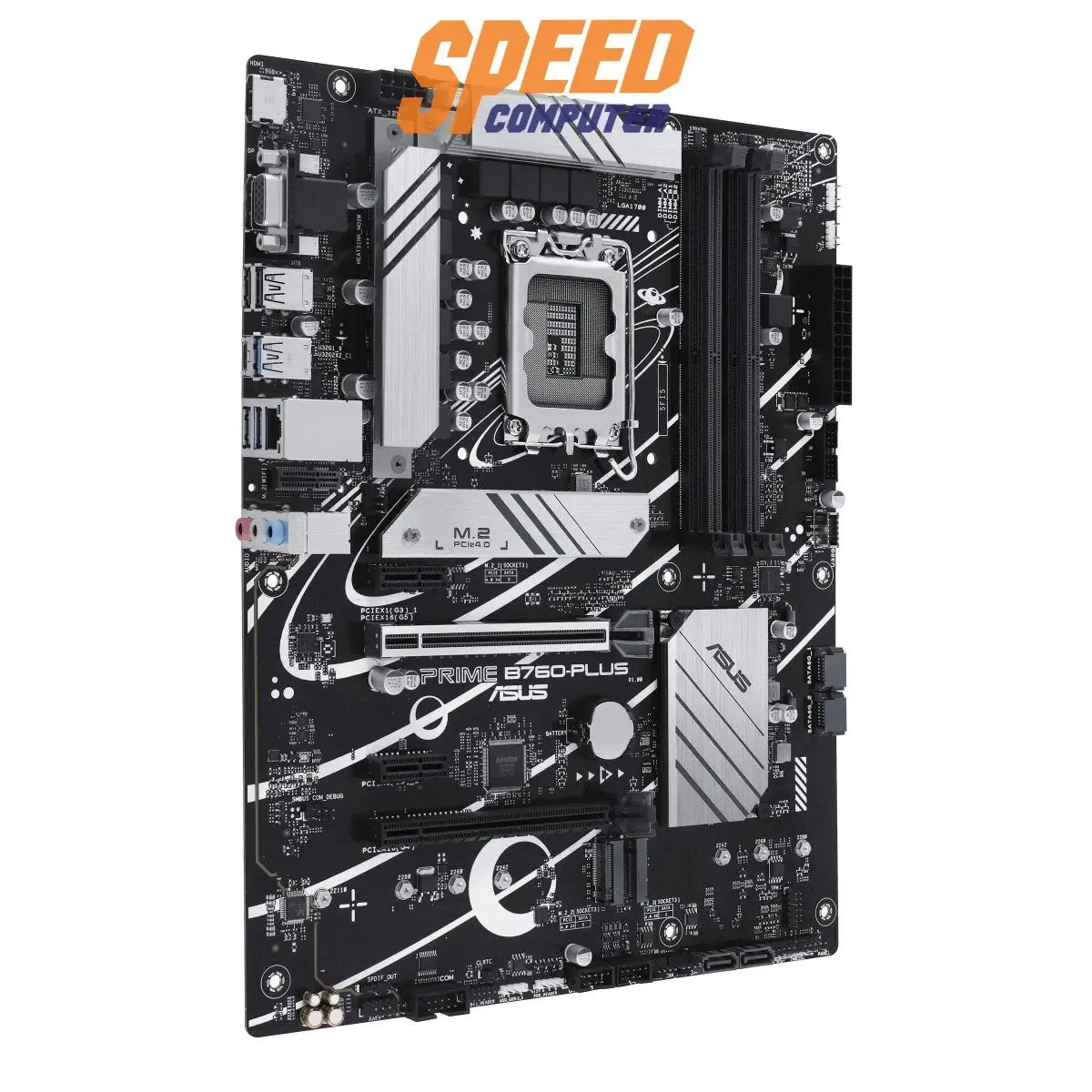

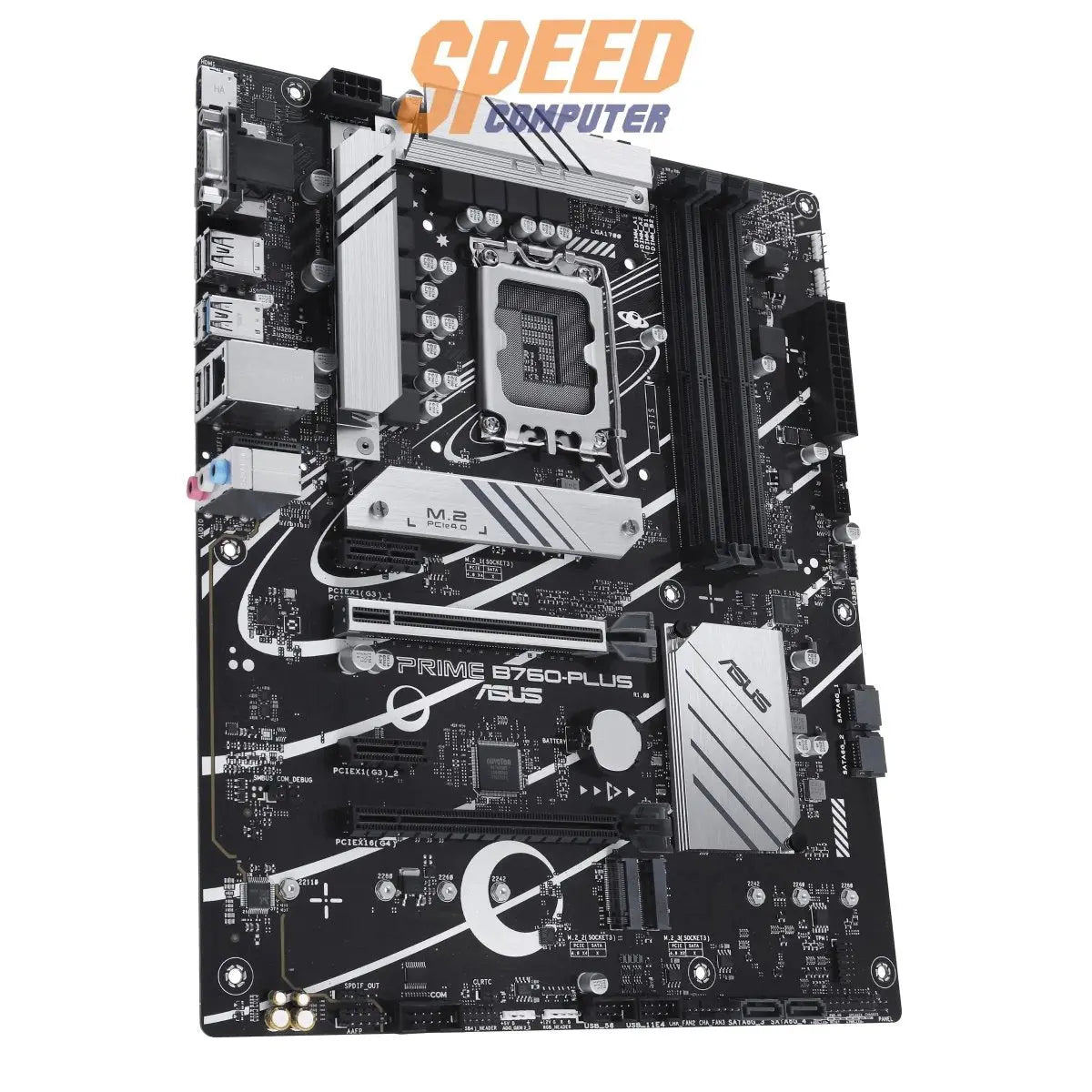

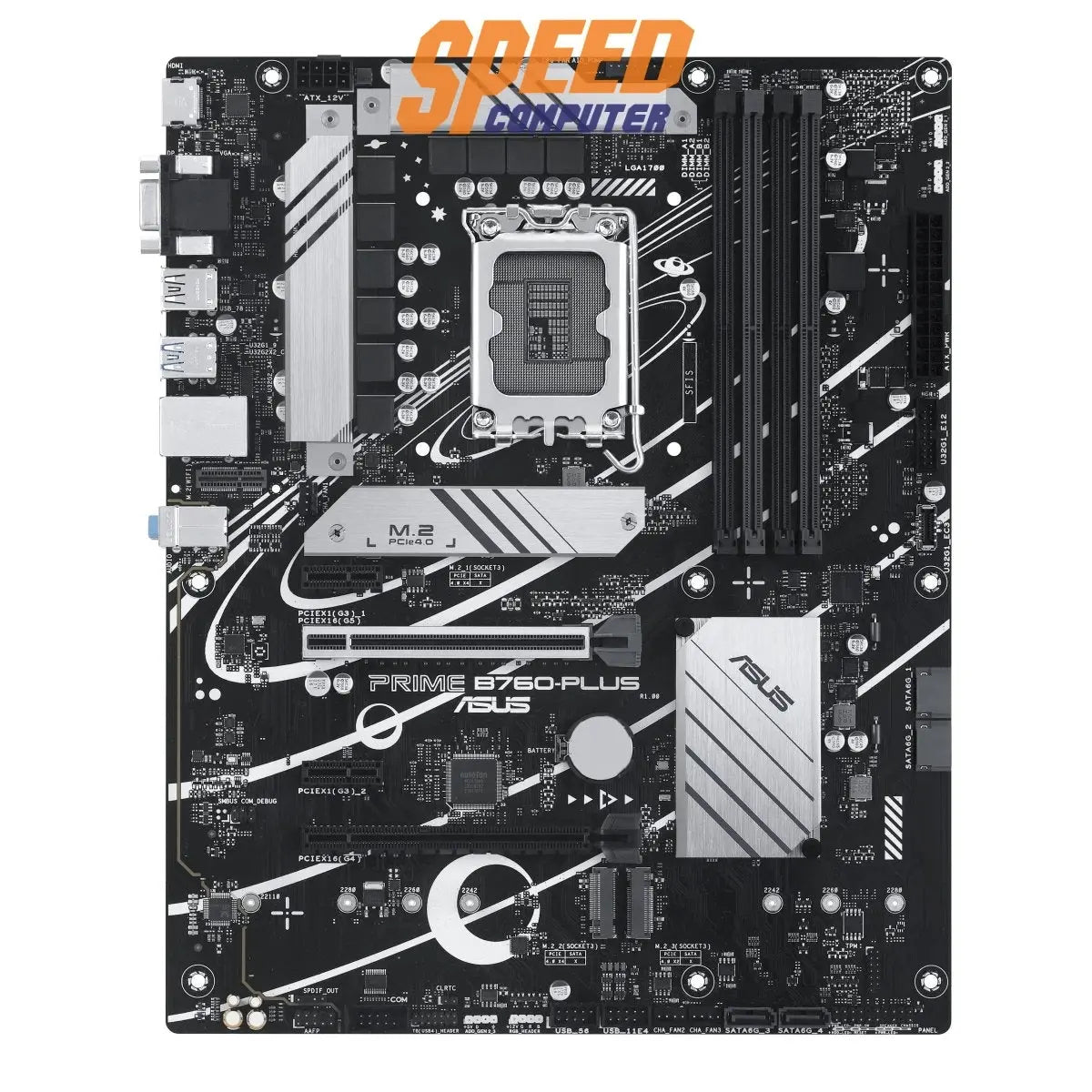

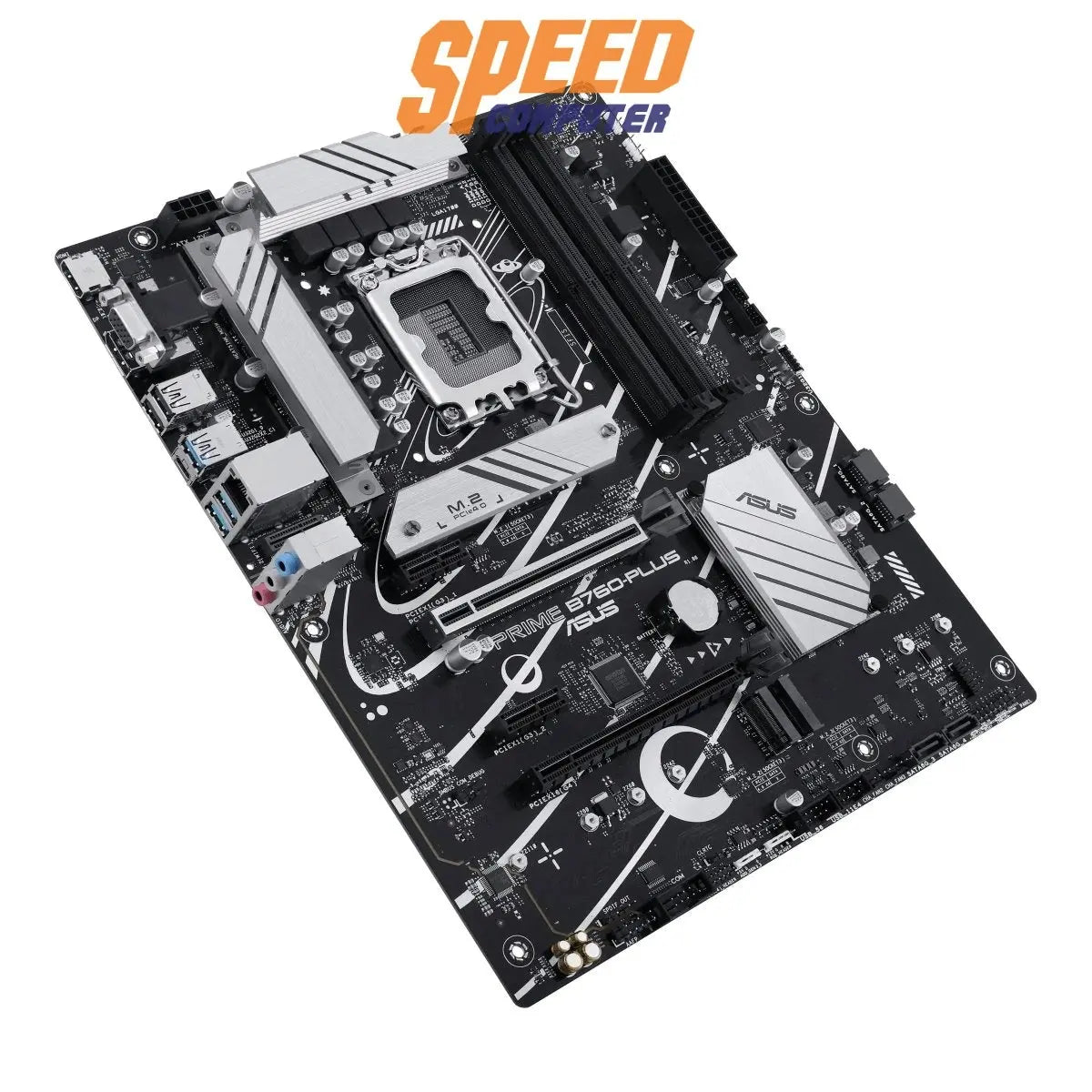

Mainboard Asus PRIME B760 PLUS DDR5 LGA1700 ATX

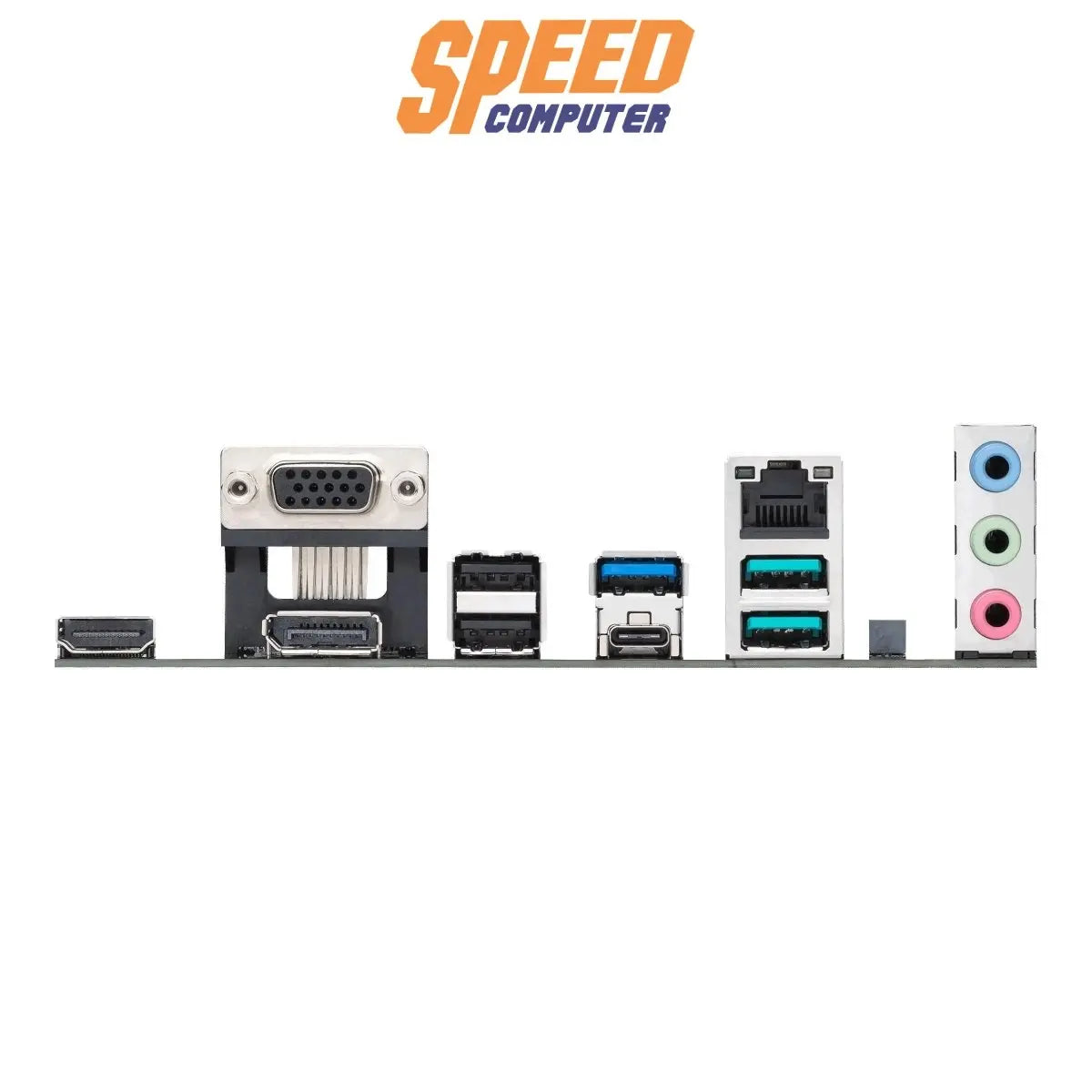

ASUS Prime B760-PLUS, Intel ^? B760 LGA 1700 ATX motherboard with PCIe 5.0, 3 PCIe 4.0 M.2 slots, DDR5, Realtek 2.5Gb Ethernet, DisplayPort, VGA, HDMI,? SATA 6 Gbps, USB 3.2 Gen 2x2 Type-C ^?, Front USB 3.2 Gen 1 Type-C ^?, Supports Thunderbolt? (USB4 ^? ), Aura Sync

• Intel Socket ^? LGA 1700: Ready for Intel ^? 13th ^and 12th ^Gen Processors
• Ultra-fast connectivity: PCIe 5.0, three PCIe 4.0 M.2, Realtek 2.5Gb Ethernet, USB 3.2 Gen 2x2 Type-C ^™ , supports USB 3.2 Gen 1 Type-C ^™ header and front Thunderbolt™ (USB4 ^™ )
• Comprehensive cooling: VRM heatsink, M.2 heatsink, PCH heatsink, hybrid fan header and Fan Xpert 2+
• Special memory technologies: ASUS Enhanced Memory Profile II and ASUS OptiMem II
• Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB headers for RGB LED strips, easily sync with Aura Sync compatible hardware

Flexibility

Comprehensive control is the foundation of the ASUS PRIME series. The PRIME B760-PLUS motherboard is packed with flexible tools to tweak every aspect of your system, allowing you to perfectly tailor performance to your work style for maximum productivity.

Intelligent control

ASUS Intelligent Control makes your PC smart. In addition to taking care of complex tweaks and dynamically optimizing key aspects of your system, it also includes smartly simple options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans.

• Energy saving

All-round energy efficiency

The power saving function includes various settings that can easily optimize power usage and maximize energy savings. You can enable the CPU power limit, dim the Aura lighting, and set the fan profile to power saving mode. You can also switch between the power saving plans available in Microsoft Windows.

• Fan Xpert 2+

Flexible air and liquid cooling control

ASUS Fan Xpert 2+ software provides comprehensive control over all-in-one (AIO) fans and coolers. Whether cooling with air or water, Auto Adjust mode intelligently configures all parameters with a single click. There's also an Extreme Quiet mode that reduces chassis fans to below the default minimum, so your system is whisper quiet even when working lightly. Fans and AIO coolers can be controlled via the UEFI BIOS.

• Digi+ VRM Control

Precise digital power control

The Digi+ Voltage Regulator Module (VRM) provides real-time voltage drop control, automatically switching frequency and power efficiency settings. It also allows you to fine-tune your CPU for maximum stability and performance.

UEFI BIOS

The renowned ASUS UEFI BIOS has everything you need to configure, tweak, and fine-tune your system. There are smart, simple options for beginner PC DIYers, as well as comprehensive features for seasoned veterans.

Advanced customization for serious tweakers

The easy-to-use Advanced Mode offered through UEFI gives you complete control. A built-in search feature makes it easy to find options, and advanced functions let you make intelligent adjustments so you can dial in the performance you need.

Search function

Find the options or settings you need quickly and easily.

ASUS user profile

Set port configuration between different BIOS versions or share with friends.

Easy and quick installation

EZ Mode displays key settings and statistics, and also includes a guided wizard, drag-and-drop functionality, and a one-click application for essential settings, all to help you get up and running in no time.

Easy-to-use graphical fan control

Easily customize individual fan settings by dragging curves with the mouse.

Aura (Stealth) On/Off Mode

Easily turn on or off Aura RGB lighting or any onboard LEDs for a subtle yet elegant touch.

cool

The PRIME B760-PLUS motherboard is engineered with multiple onboard heatsinks and hybrid fan headers to ensure your rig stays cool and stable under intense workloads.

Heatsink

• M.2 Heatsink

M.2 Heatsink

The M.2 heatsink prevents throttling that can occur with the M.2 storage during continuous transfers. The heatsink is held in place with a retaining screw, and these removable retaining screws reduce the risk of dropping or losing the heatsink when removing it.

• VRM Heatsink

VRM heatsink and thermal pad

The VRM heatsink and heat sink improve heat transfer from the MOSFET for better cooling performance.

Cooler by design

The PRIME B760-PLUS features comprehensive cooling controls that can be configured via Fan Xpert 2+ software or via the UEFI BIOS.

• Multiple temperature sources

Each header can dynamically reference three thermal sensors. Fan Xpert 2+ lets you map the temperature of supported ASUS graphics cards to optimize cooling for GPU and CPU-intensive tasks.

• AIO pump head

Dedicated PWM/DC header for integrated water cooling setup

• Intelligent Protection

A dedicated IC protects each fan header from overheating and overcurrent.

• 4-pin PWM/DC fan

Each onboard header supports automatic detection of PWM or DC fans.

Performance

The PRIME B760-PLUS motherboard is built to support the high core count and bandwidth demands of 13th Gen Intel® ^Core ™ ^processors . ASUS B760 motherboards provide all the foundations to boost daily productivity, so your system is ready for action with stable power, intuitive cooling, and flexible data transfer options.

Strong power design

Stable power is essential to extract every last bit of performance from the Intel® PRIME B760-PLUS processor ^. It is designed to meet the demands of these high-core CPUs.

• ProCool connector

ProCool connector

Proprietary connectors enhance the motherboard’s connection to the PSU with an 8-pin connector that sends 12 volts of power directly to the processor. Each jack has solid pins that can handle more current than hollow connectors.

• Six-layer PCB design

Six-layer PCB design

Multi-layer PCB optimizes thermal management for critical components, giving more room to push the CPU beyond stock speeds.

Customize

The PRIME B760-PLUS motherboard adds subtle details that enhance every experience, from a dedicated codec that delivers pristine audio quality to intuitive RGB lighting controls that let you customize your system to create a unique look.

• sound

• Distinctive sound

  • Combined onboard features provide enhanced sound

Smart design and premium hardware create sound quality unlike anything you've ever experienced.

• Soundproofing

The noise shielding ensures precise analog/digital separation and greatly reduces multilateral interference.

• Dedicated audio PCB layer

Separate layers for left and right tracks ensure that both channels provide consistent and equal quality.

• Premium audio capacitors

Delivers warm, natural and immersive sound with exceptional clarity and fidelity.

• Personal

  • Aura Zinc

Stand out from the competition

A well-tuned enthusiast system deserves aesthetics to match. ASUS Aura provides full RGB lighting control with a variety of presets for the built-in RGB LEDs, as well as strips and devices connected to the onboard RGB headers — and it can all be synced with the growing portfolio of Aura-capable hardware.

• Gen 2 address header

Three Addressable Gen 2 headers can detect the number of LEDs on a second-gen addressable RGB device, allowing the software to automatically tailor lighting effects to a specific device. The new headers also provide backward compatibility with existing Aura RGB devices.

• Armory

Within a single, easy-to-use interface, Armory Crate offers easily customizable Aura Sync RGB settings for every supported device in your arsenal, as well as controls for a growing family of ASUS products, including keyboard and mouse settings. Armory Crate also integrates product registration and a news feed to keep you up to date with interesting updates for the ASUS community.

• DIY friendly

Q-LED core

The Q-LED Core display generates a light pattern by the power LED during the power-on self-test (POST) that can help users troubleshoot potential problems.
