Mainboard ASRock X870E TAICHI DDR5

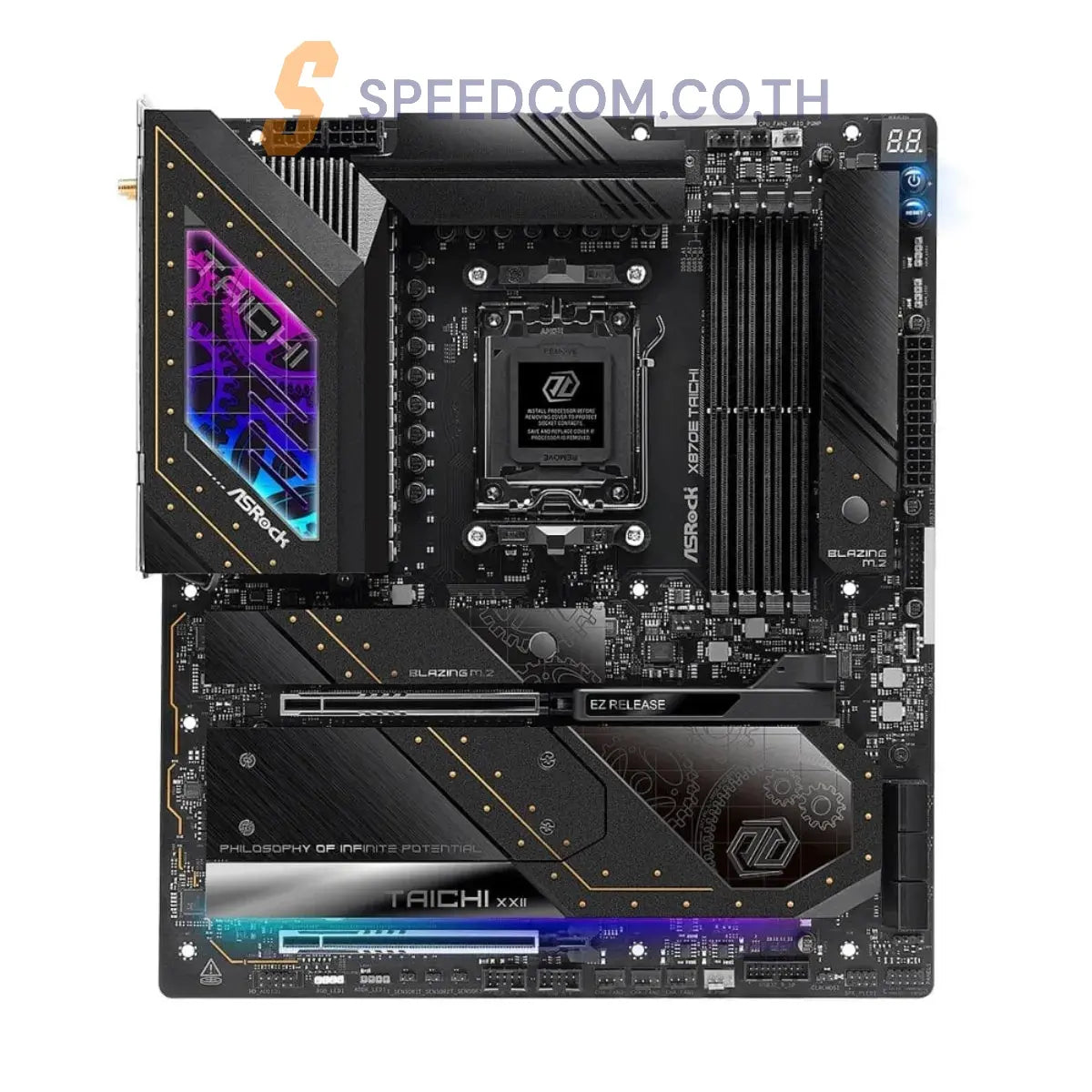

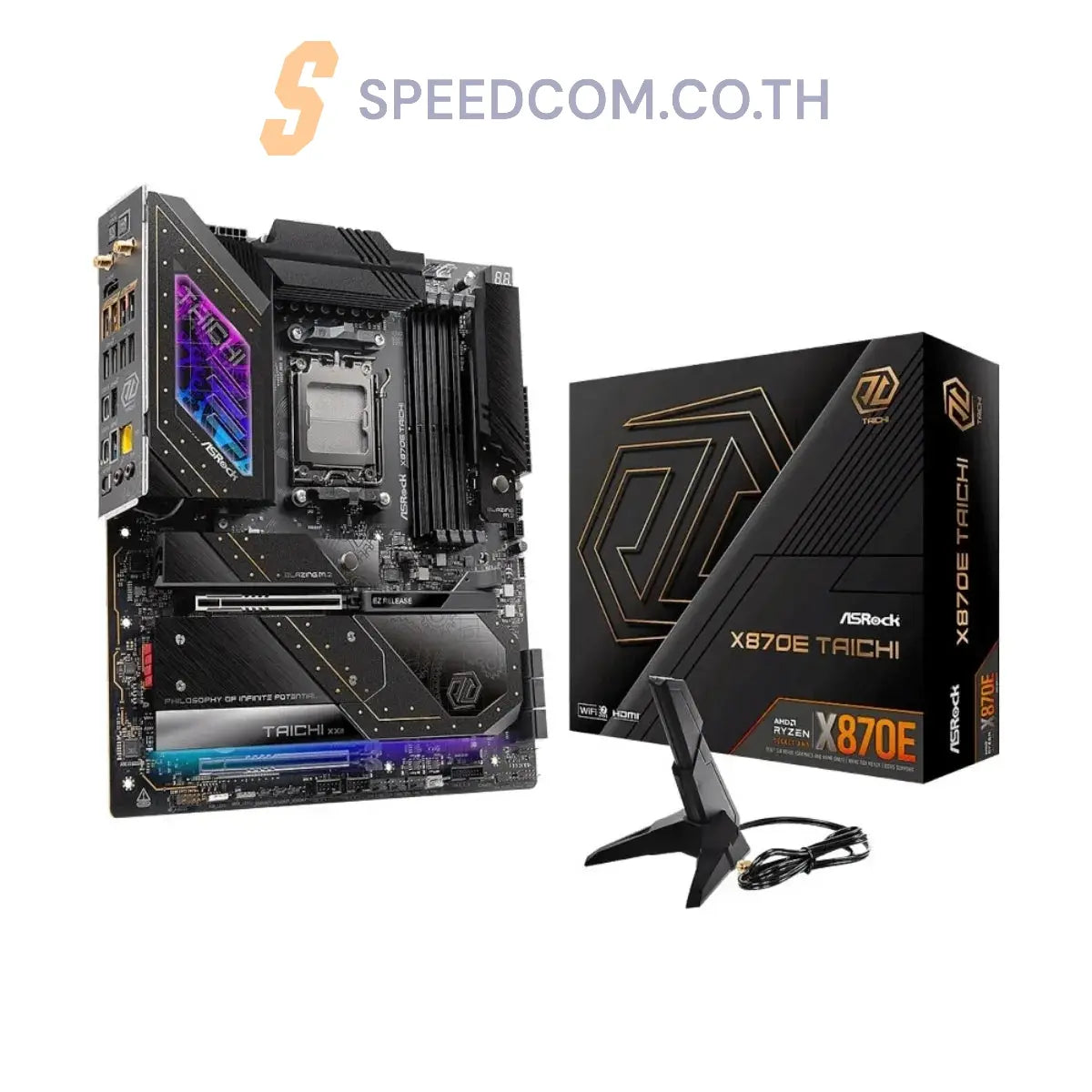

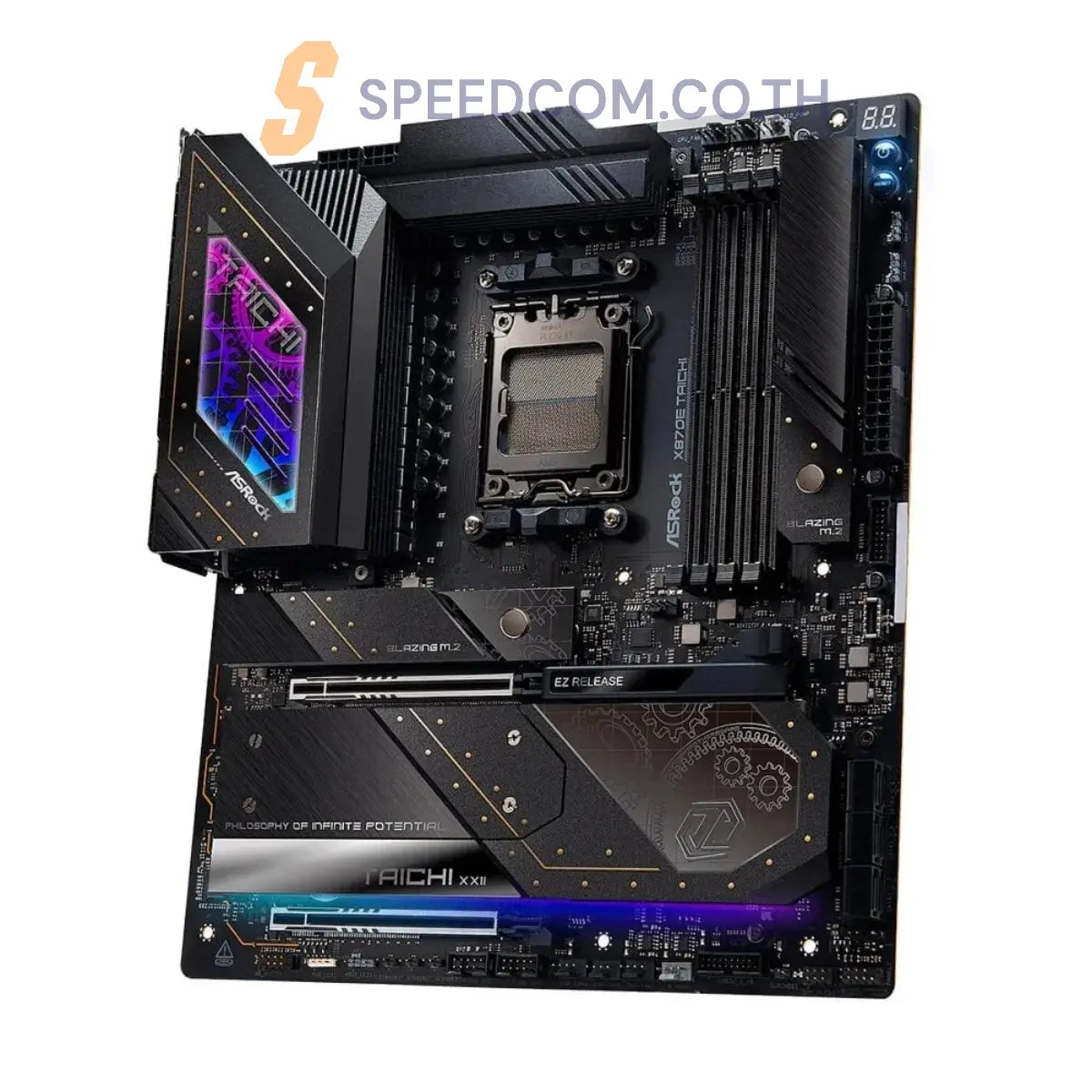

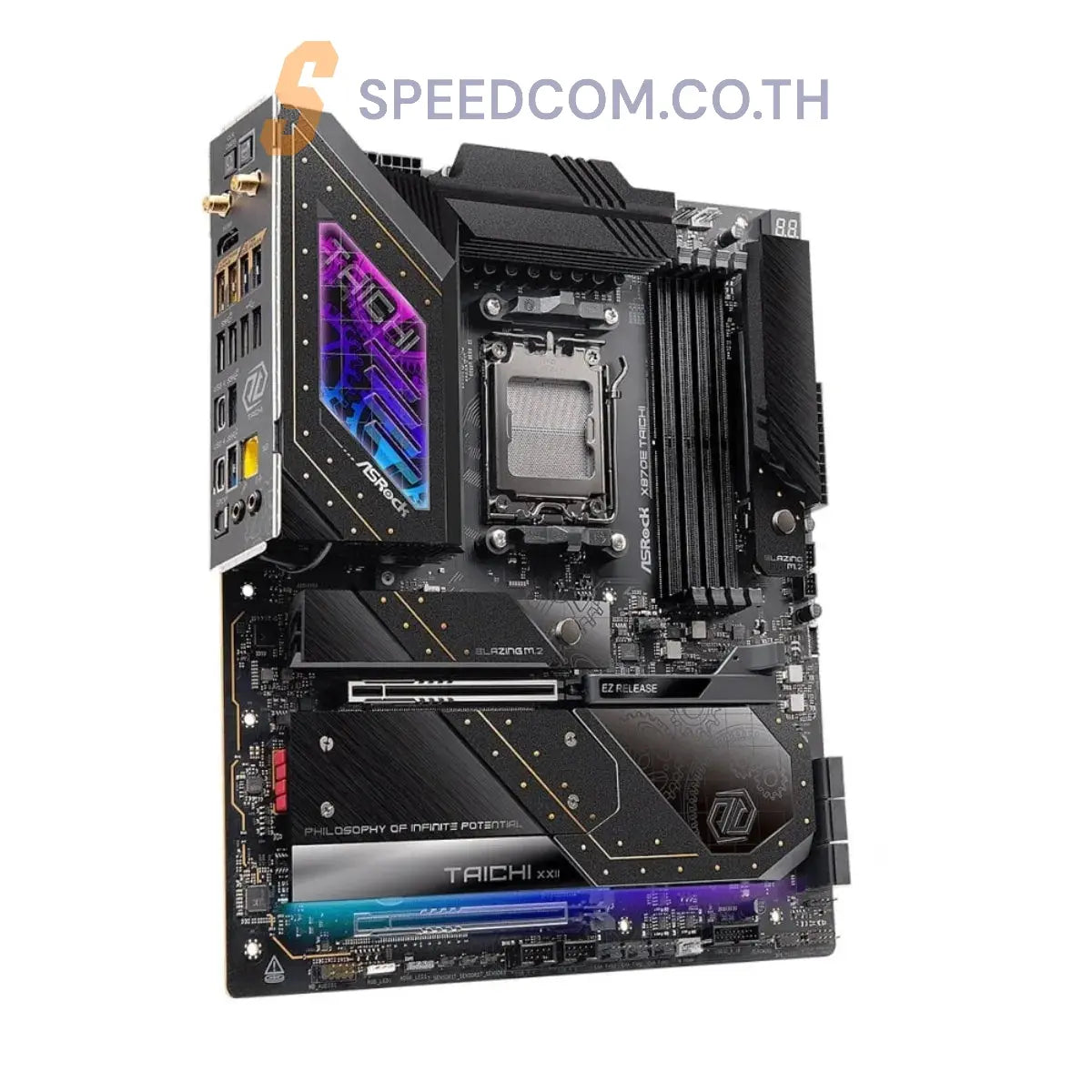

ASRock X870E TAICHI DDR5

• Brand: ASRock

• Model: X870E TAICHI

• Chipset: AMD X870E

• Form factor: E-ATX

• Socket: AM5

• CPU Support: Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors*
  Supports ASRock Hyper BCLK Engine

• Memory type: DDR5

• Graphics: Integrated AMD RDNA™ graphics (Actual support may vary by CPU)
  - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
  - 2 x USB4, support HDCP 2.3 and max. resolution up to 8K 30Hz*
• RAM Slots: 4 x DDR5 DIMM Slots

• Storage: CPU:
  - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
  Chipset:
  - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
  - 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
  - 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
  - 6 x SATA3 6.0 Gb/s Connectors
  * Supports NVMe SSD as boot disks
  M2_1 is the first priority for M.2 installation.
  M2_1 will run at Gen5x4 with 9000 and 7000 series processors and Gen4x4 with 8000 (Phoenix 1 and Phoenix 2) series processors.
  Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices.
  Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices
• M.2 supports storage types: PCIe Gen3 x4 & SATA3

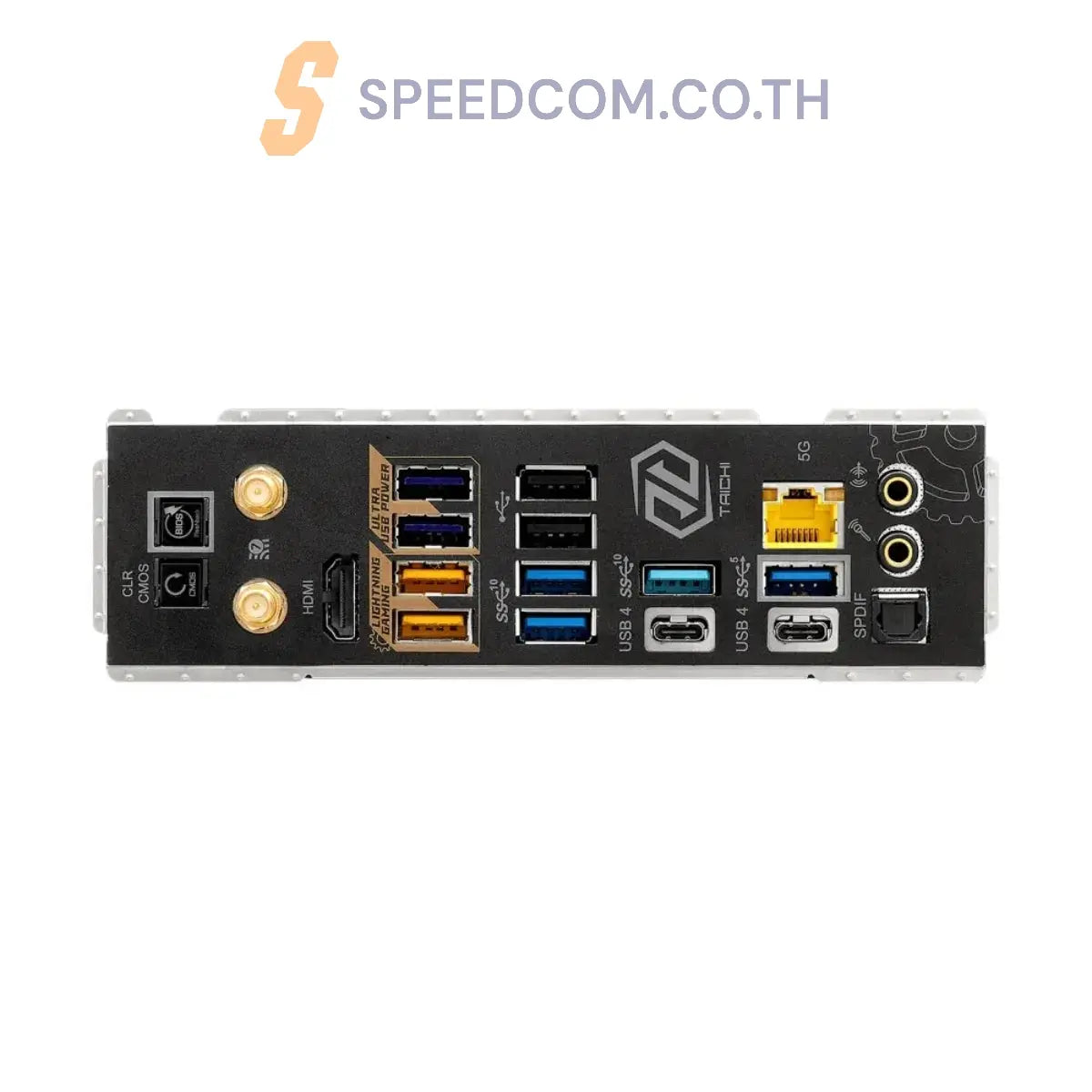

• Rear connection ports:
  2 x Antenna Ports
  1 x HDMI Port
  1 x Optical SPDIF Out Port
  2 x USB4 Type-C Ports (40 Gb/s)*
  5 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (USB32_12 are Lightning Gaming Ports.)
  3 x USB 3.2 Gen1 Type-A Ports (USB32_34 supports Ultra USB Power.)
  2 x USB 2.0 Ports
  1 x RJ-45 LAN Port
  1 x Clear CMOS Button
  1 x BIOS Flashback Button
  1 x Line Out Jack (Gold Audio Jack)
  1 x Microphone Input Jack (Gold Audio Jack)

• Warranty: 3 Years

ASRock X870E TAICHI DDR5

Taichi series flagship motherboard features top-level hardware features, strong power design, USB4 Type-C and DIY function, designed for high-end gamers, providing luxurious aesthetics and powerful performance.

Philosophy of Infinite Potential

Taichi represents the philosophy of complete and infinite potential. A motherboard that can handle any task with style! Like water, formless, formless, versatile for any situation.

Supports DDR5 XMP and EXPO

ASRock doesn't compromise on any details with the design concept of "Built for Stability and Reliability". This motherboard is built with high-quality materials. Enthusiasts can enjoy enhanced DDR5 memory overclocking performance by enabling pre-tested profiles. Make sure the memory modules support Intel ^® XMP/AMD EXPO™ and overclock at a cost-effective, satisfying and effortless pace.

* Memory overclocking involves certain risks and may affect system stability. Please note that overclocking should be done at your own risk and expense. EXPO/XMP profile support may vary depending on system configuration, memory module, and motherboard model. Please refer to Memory QVL for complete support list.

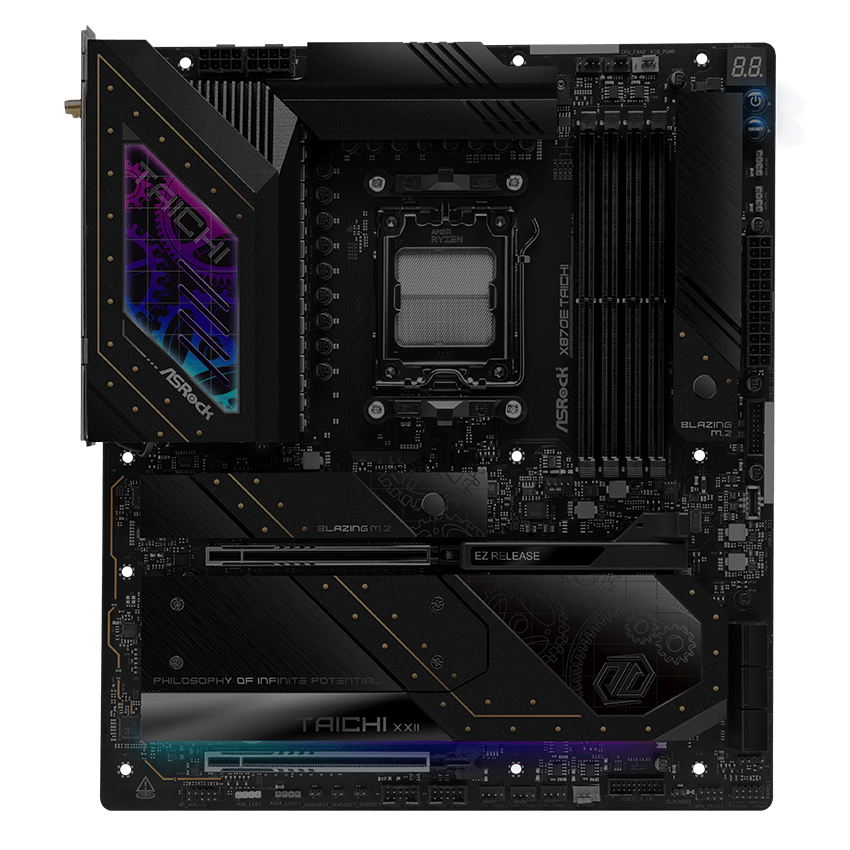

High-speed M.2 solution

Outstanding PCIe Gen5 M.2

Blazing M.2 supports the latest PCI Express 5.0 standard to double the bandwidth compared to previous generations, with astonishing transfer speeds of up to 128Gb/s, ready to unlock the potential of future super-fast SSDs.

Improved USB4 Type-C

USB4 technology brings the speed and flexibility of the latest USB Type-C, delivering a fast and easy connection level for work or home, enabling lightning-fast 40Gbps data transfer rates.

Enhanced 5 Gb/s LAN

ASRock's 5Gb/s LAN connector comes with an exclusive patent-pending design, which features superior electromagnetic interference resistance, ensuring stable and high-speed performance, and delivering a better network experience to users.

Front panel USB 3.2 Gen2x2 Type-C Header

The latest USB 3.2 Gen2x2 Type-C delivers data transfer rates of up to 20 Gbps, which is twice as fast as the previous generation, with a blazing-fast data transfer interface and a reversible USB Type-C design that fits either end of the connector.

Polychrome RGB

This motherboard features onboard RGB connectors and addressable RGB connectors, allowing the motherboard to connect to compatible LED devices such as light strips, CPU fans, coolers, chassis, and more. Users can also synchronize the RGB LED devices with Polychrome RGB Sync certified accessories to create their own unique lighting effects.

*The Addressable RGB LED Header supports WS2812B (5V/Data/GND) addressable RGB LED strips with a maximum power rating of 3A (5V), up to 80 LEDs, and a length of up to 2 meters.
*The RGB LED header supports standard 5050 RGB LED strips (12V/G/R/B), with a maximum power rating of 3A (12V) and a length of no more than 2 meters.

RGB signal

SignalRGB unifies your RGB devices, providing seamless customization, responsive effects, macro automation, and system monitoring. This official partnership enables ASRock motherboards to provide advanced lighting control, increased compatibility with a wide range of RGB devices, and greater customization flexibility.
